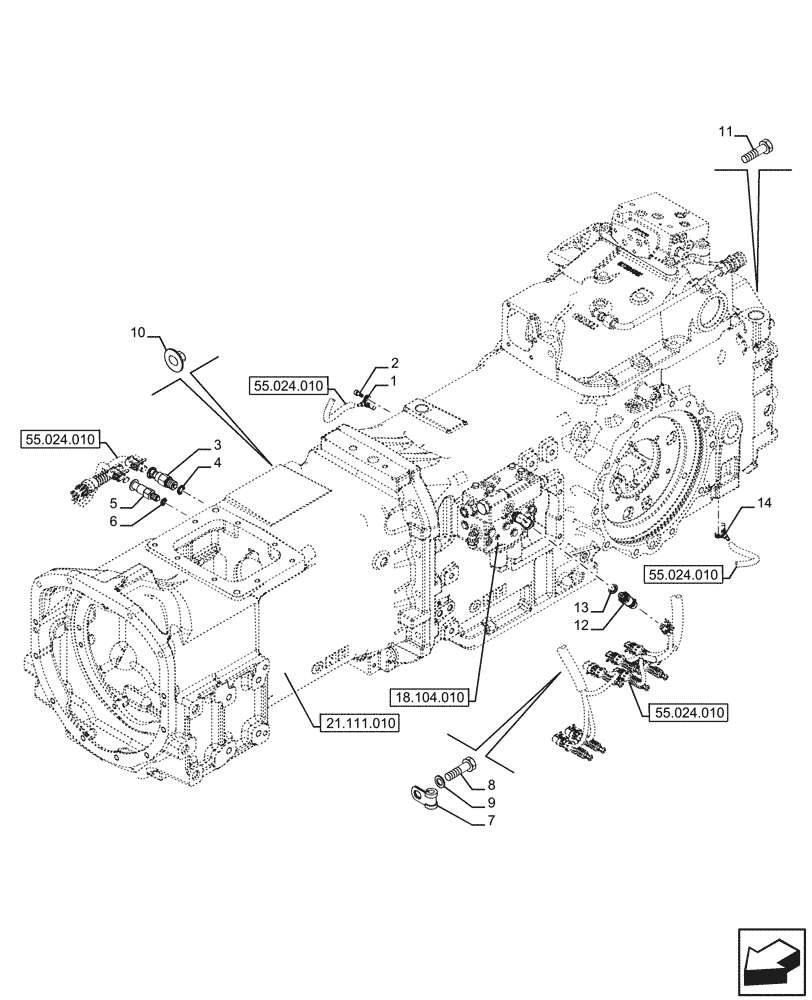

Запчасти Case IH FARMALL 110U (55.020.010) - VAR - 334114, 334117, 334775, 334779, 334780, 390430 - TRANSMISSION, SENSOR (55) - ELECTRICAL SYSTEMS

1

84243033

SENSOR

Speed, Transmission Gear

1шт.

2

14305720

HEX SOC SCREW,M6 x 14mm, Cl 8.8, Full Thd

1шт.

3

87369250

SWITCH

Shift rail position

1шт.

4

81832258

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

87369251

SWITCH ASSY

Shift rail position

1шт.

6

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

10449890

CLAMP,6mm, Coat, 9mm Bolt Hole, P Type

2шт.

8

10977714

SCREW,Hex, M5 x 14mm, Cl 5.8, Full Thd

2шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

10

87368019

CAP,25mm OD

1шт.

11

16042924

SCREW,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

1шт.

12

84407735

PRESSURE SWITCH,0.40 Bar

Transmission, Oil Pressure

1шт.

13

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

14

47767008

SENSOR

1шт.
