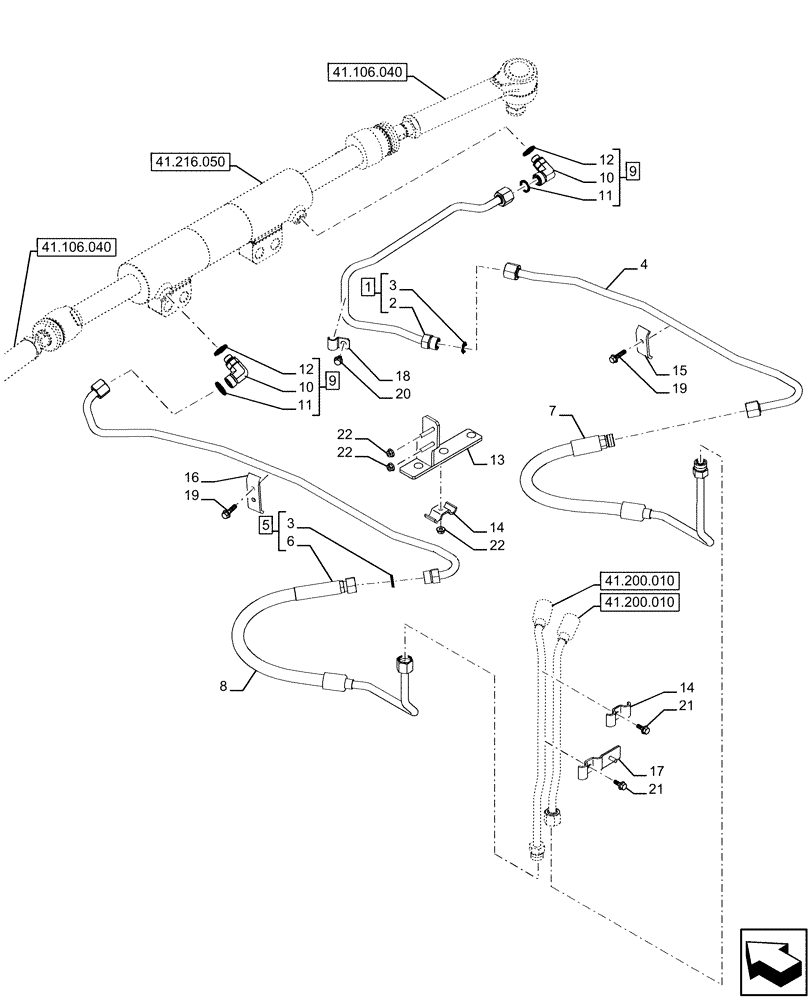

Запчасти Case IH FARMALL 110U (41.216.060) - VAR - 337707, 758604 - SUSPENDED FRONT AXLE, HYDRAULIC STEERING, LINE, STEERING CYLINDER (41) - STEERING

1

47858260

PIPE

ASSY, from Hydraulic Steering to Steering Cylinder, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Pipe, Incl in 1

1шт.

3

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

4

47858411

PIPE

from Hydraulic Steering to Steering Cylinder

1шт.

5

47803205

PIPE

ASSY, from Hydraulic Steering to Steering Cylinder, Incl 3 (Qty 1), 6

1шт.

6

NSS

NOT SOLD SEPARAT

915.76mm, Pipe, Incl in 5

1шт.

7

47803226

PIPE

from Hydraulic Steering to Steering Cylinder

1шт.

8

47803228

PIPE

from Hydraulic Steering to Steering Cylinder

1шт.

9

5185548

ELBOW,M14 x 1.5mm ORB, 13/16"-16" ORFS

ASSY, Incl, 10 - 12

2шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

2шт.

11

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

12

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

13

47807174

BRACKET

1шт.

14

44906584

RETAINER COLLAR,12mm ID

2шт.

15

47674265

HOSE CLAMP

1шт.

16

47858697

HOSE CLAMP

1шт.

17

47677882

BRACKET

1шт.

18

84168456

CLAMP BRACKET

1шт.

19

845-6025

BOLT,Hex Flg, M6 x 25, 8.8

3шт.

20

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

1шт.

21

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

22

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

M6

3шт.
