(41.216.030) - VAR - 330308 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, STEERING CYLINDER

Запчасти Case IH FARMALL 110U (41.216.030) - VAR - 330308 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, STEERING CYLINDER (41) - STEERING

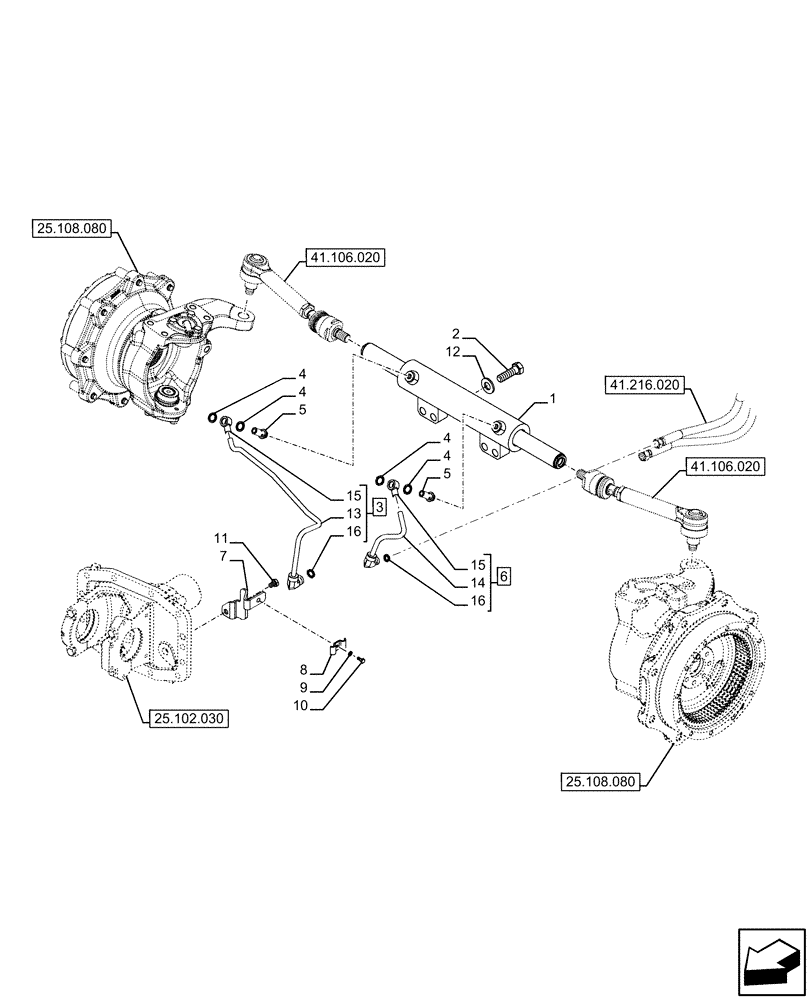

Схема запчастей Case IH FARMALL 110U - (41.216.030) - VAR - 330308 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, STEERING CYLINDER (41) - STEERING
41.216.020
4
10
13
14
12
1
4
8
16
7
15
5
11
5
3
6
4
15
16
4
9
2
25.108.080
25.108.080
25.102.030
41.106.020
41.106.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47625377

STEERING CYLINDER

1шт.

2

47371337

BOLT,Hex, M18 x 1.5 x 60mm

M18 x 1.5 x 60

4шт.

3

47636348

PIPE

ASSY, Incl 13, 15 (Qty 1), 16 (Qty 1)

1шт.

4

87391188

SEAL,14mm ID x 22mm OD x 1.5mm Thk

4шт.

5

87736840

BOLT,M14 x 1.5 x 30mm

M14 x 1.5 x 30mm

2шт.

6

47465442

TUBE

ASSY, Incl 14, 15 (Qty 1), 16 (Qty 1)

1шт.

7

84545406

BRACKET

1шт.

8

4999554

CLAMP,2 Hoses

1шт.

9

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

10

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

11

15970324

SCREW,Hex, M10 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

12

84349418

WASHER,19mm ID x 34mm OD x 3mm Thk

4шт.

13

NSS

NOT SOLD SEPARAT

Pipe, Incl in 3

1шт.

14

NSS

NOT SOLD SEPARAT

Pipe, Incl in 6

1шт.

15

87739001

FITTING

M14

2шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
