(41.200.010) - VAR - 331444, 332147, 335387, 336730, 339434, 391246 - STEERING VALVE, HYDR LINES

Запчасти Case IH FARMALL 110U (41.200.010) - VAR - 331444, 332147, 335387, 336730, 339434, 391246 - STEERING VALVE, HYDR LINES (41) - STEERING

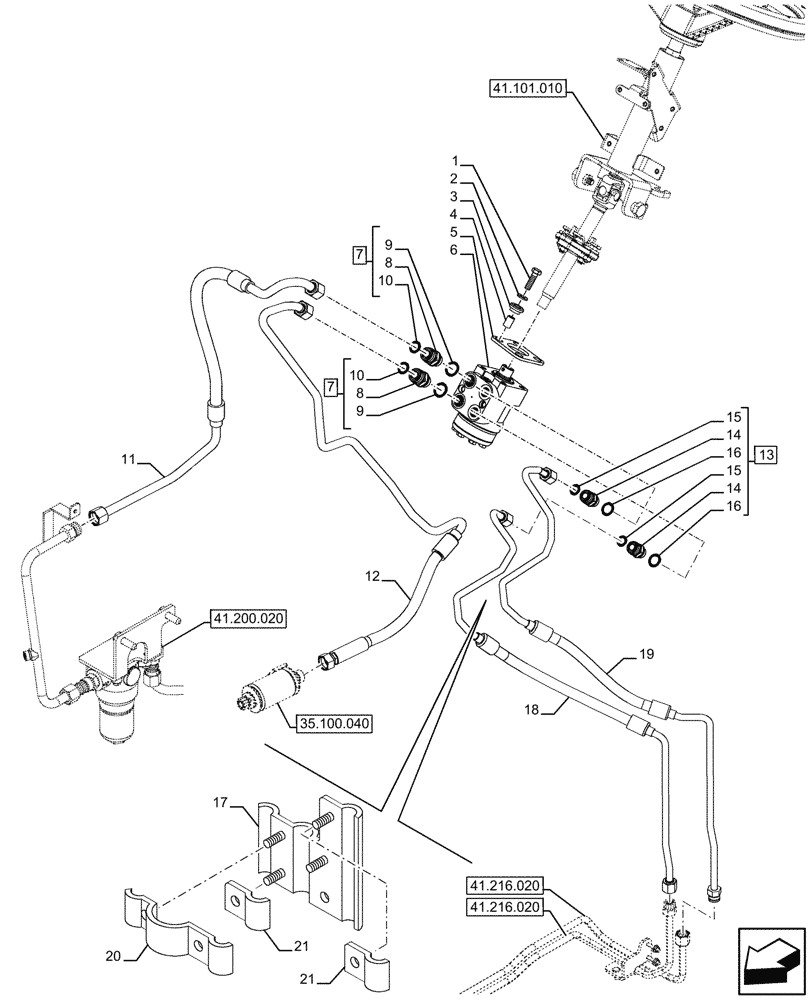

Схема запчастей Case IH FARMALL 110U - (41.200.010) - VAR - 331444, 332147, 335387, 336730, 339434, 391246 - STEERING VALVE, HYDR LINES (41) - STEERING
35.100.040
3
15
11
18
4
16
19
1
15
21
9
12
9
14
20
7
2
6
16
10
8
7
17
5
13
10
14
8
21
41.101.010
41.216.020
41.216.020
41.200.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

2

12601474

WAVE WASHER,Wave, 10.50mm ID x 21.00mm OD x 0.80mm, 3.00mm, CST, DAC

4шт.

3

5197926

PLASTIC-RUBBER TUBE,14mm ID x 20mm OD x 16mm L

4шт.

4

5197925

SPACER,10.1mm ID x 14mm OD x 20mm L

4шт.

5

5197927

SHIM,45mm ID x 82mm OD x 5mm Thk

1шт.

6

47137771

HYDRAULIC STEERING

Standard

1шт.

6

82001250

HYDRAULIC STEERING

Alternative Part

1шт.

Same Usage/Applicability. To be Ordered when 47137771 is not Available

1шт.

7

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 8 - 10

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

10

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

47670066

PIPE

Return to Steering

1шт.

12

47903518

PIPE

Delivery for Steering

1шт.

13

5185561

HYD CONNECTOR,Straight, M18 x 1.5 UN/UNF, 13/16"-16" ORFS

ASSY, Incl 14 - 16

2шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

1шт.

16

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

17

47903525

BRACKET

1шт.

18

47903512

PIPE

1шт.

19

479035515

1шт.

20

47903529

BRACKET

1шт.

21

47903532

BRACKET

2шт.
