(39.140.010) - VAR - 330471 - REAR BALLAST (150 KG)

Запчасти Case IH FARMALL 110U (39.140.010) - VAR - 330471 - REAR BALLAST (150 KG) (39) - FRAMES AND BALLASTING

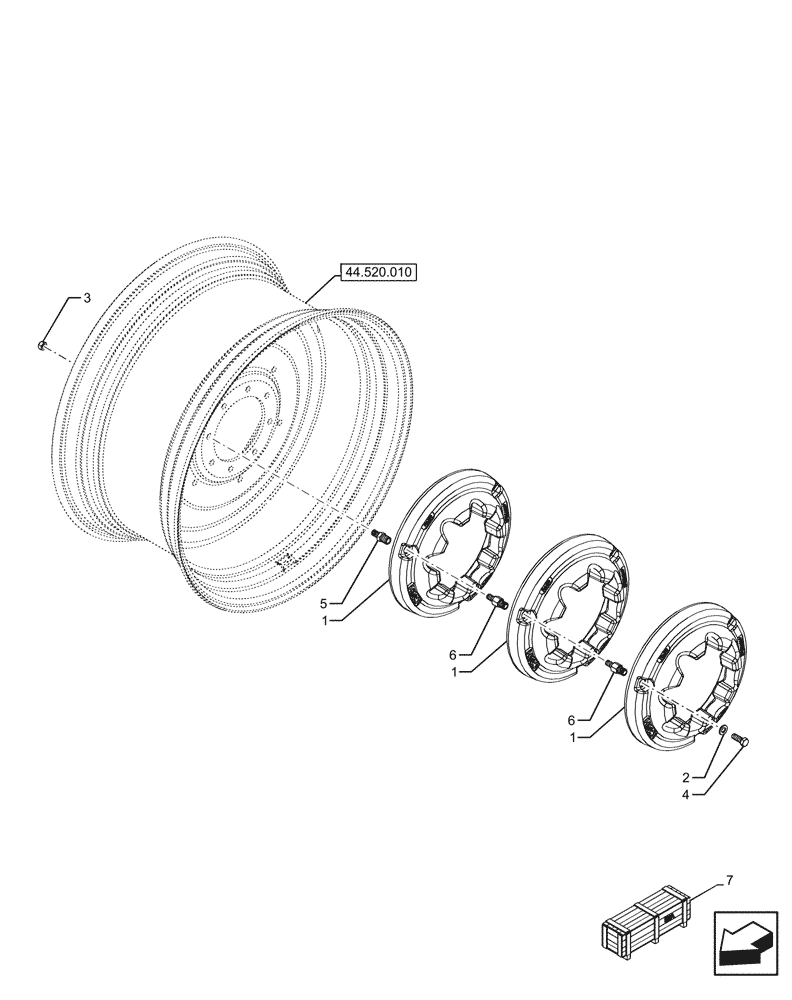

Схема запчастей Case IH FARMALL 110U - (39.140.010) - VAR - 330471 - REAR BALLAST (150 KG) (39) - FRAMES AND BALLASTING
44.520.010
6
5
4
3
7
1
2
1
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47373519

WHEEL WEIGHT,50kg

50 Kg

3шт.

2

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

3шт.

3

12164124

NUT,M16 x 1.5, Cl 8

3шт.

4

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

3шт.

5

44018046

SCREW,M16 x 1.5 x 60mm

3шт.

6

44018047

SCREW,M16 x 1.5 x 78mm

6шт.

7

710471260

DIA KIT, TRACTOR

Rear Ballast, Incl 1 - 6

1шт.

7

718471070

DIA KIT, TRACTOR

Rear Ballast, Incl 1 - 6

1шт.
