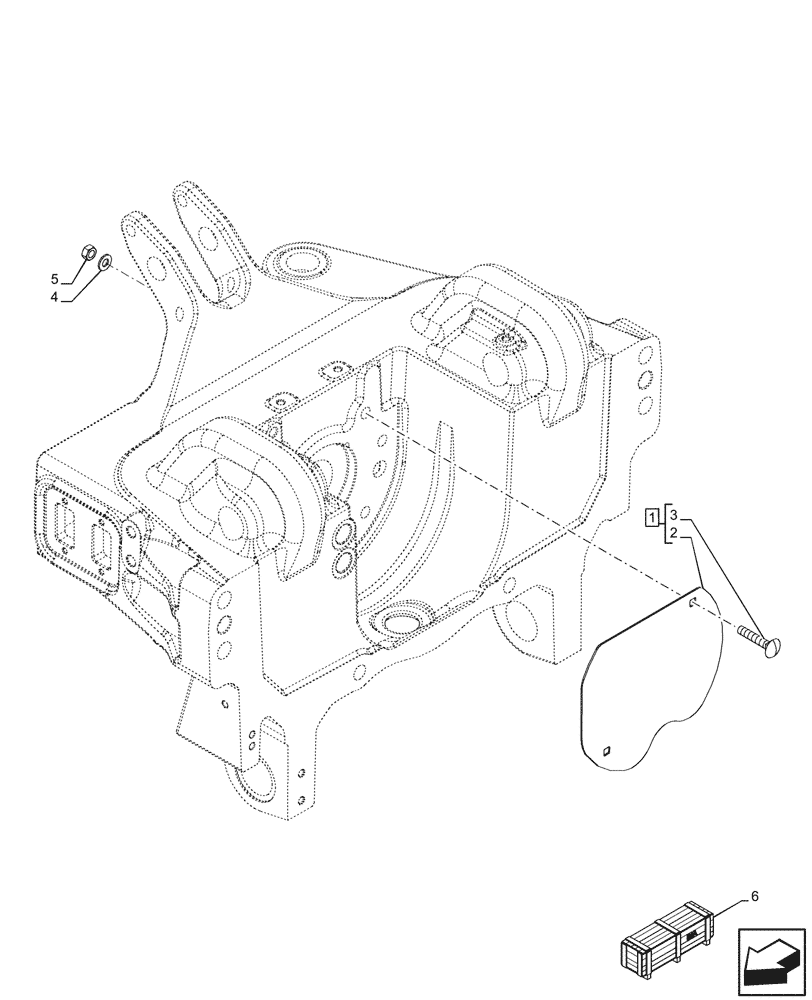

Запчасти Case IH FARMALL 110U (37.162.020) - VAR - 744942, 744558, 758336 - FRONT 3 POINT HITCH, W/O PTO, PLATE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47380359

COVER

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

9814004

CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 45mm, Cl 8.8

2шт.

4

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

43362

NUT,M8 x 1.25, Cl 10

2шт.

6

718031010

DIA KIT, TRACTOR

Chassis Mounted, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718746070

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718235020

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718033010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718090010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

6

718088010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
