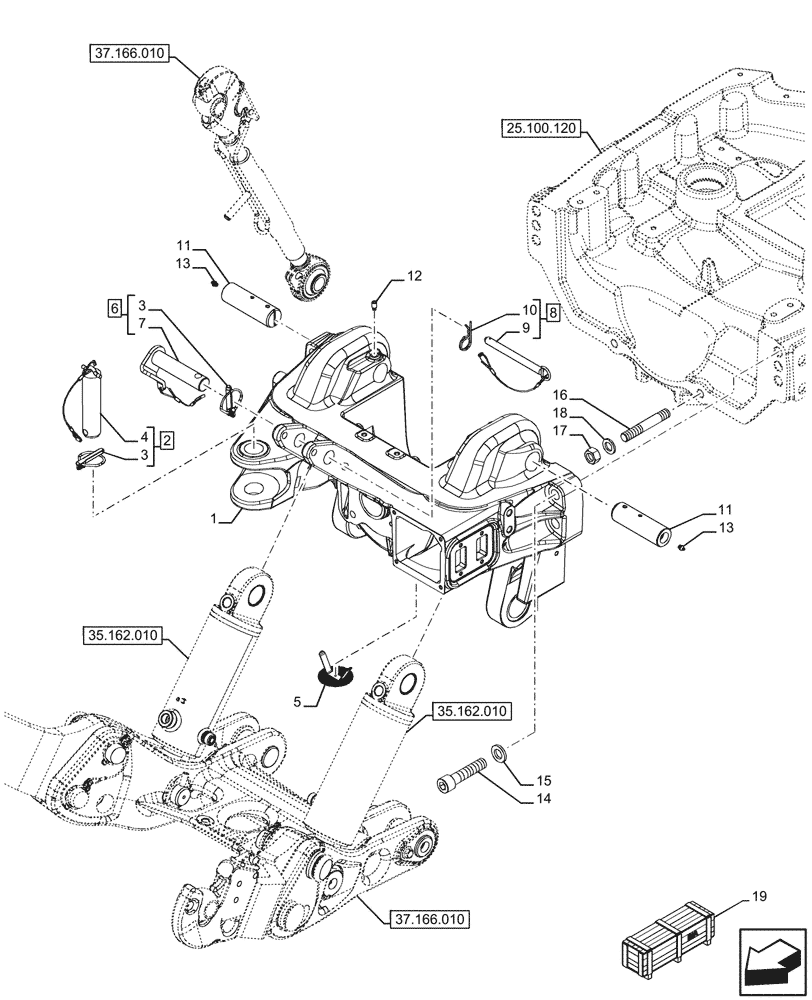

Запчасти Case IH FARMALL 110U (37.162.010) - VAR - 744942, 744943, 744558, 758288, 758386, 758578 - FRONT 3 POINT HITCH, SUPPORT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84313803

CARRIER

1шт.

2

47457860

PIN,31.5mm OD x 128mm L

ASSY, Incl 3, 4

1шт.

3

47458998

LINCH PIN,9.5mm OD x 62mm L

2шт.

4

NSS

NOT SOLD SEPARAT

Pin, Incl in 2

1шт.

5

5120218

GRILLE

1шт.

6

47457843

PIN

ASSY, Incl 3, 7

1шт.

7

NSS

NOT SOLD SEPARAT

Pin, Incl in 6

1шт.

8

47457844

LOCK PIN,12mm OD x 135mm L

ASSY, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Pin, Incl in 8

1шт.

10

84561112

COTTER PIN,3.63mm x 54.25mm L

1шт.

11

84470754

PIN,35mm OD x 113mm L

2шт.

12

87302865

SET SCREW,M8 x 16mm, Cl 8.8

2шт.

13

87588865

FITTING,M6 x 1 x 12mm L

2шт.

14

14844834

SCREW,M18 x 1.5 x 80mm, Cl 10.9

4шт.

15

10520301

WASHER,18.4mm ID x 32mm OD x 4mm Thk

4шт.

16

47362429

STUD,M16 x 85mm L

2шт.

17

392530

NUT,M16, Cl 10

2шт.

18

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

2шт.

19

718031010

DIA KIT, TRACTOR

Chassis Mounted, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718823070

DIA KIT, TRACTOR

FPTO less FHPL, Incl 2 - 5, 14 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718047010

DIA KIT, TRACTOR

FPTO less FHPL F/Suspended Front Axle, Incl 2 - 5, 14 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718746070

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718235020

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718033010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO F/Suspended Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718090010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718088010

DIA KIT, TRACTOR

Chassis Mounted D/A less FPTO for Standard Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718032010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718747070

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718091010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718237020

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718034010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Suspended Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

19

718089010

DIA KIT, TRACTOR

Chassis Mounted D/A with FPTO F/Standard Front Axle, Incl 1 - 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
