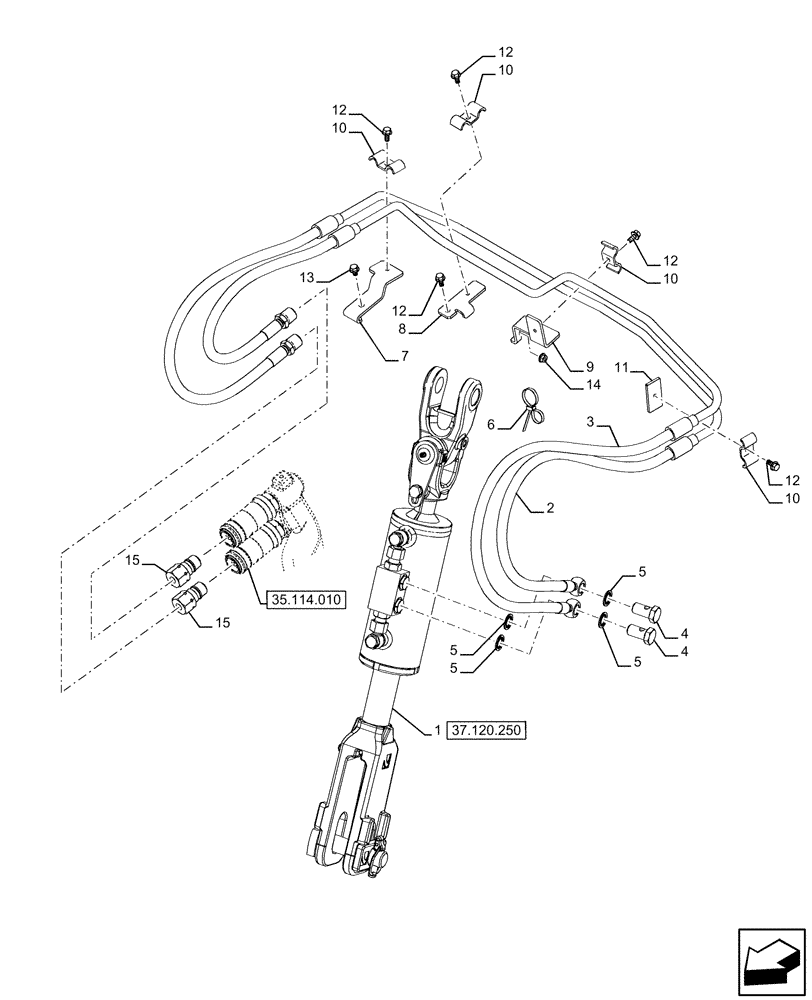

Запчасти Case IH FARMALL 110U (37.120.240) - VAR - 758326 - 3 POINT HITCH, REAR, LIFT ARM, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47569262

TIE-ROD

ASSY

1шт.

2

47745763

HYDRAULIC HOSE

1шт.

3

47745760

HYDRAULIC HOSE

1шт.

4

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

5

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

4шт.

6

82013031

CABLE TIE,193mm L

1шт.

7

47867780

BRACKET

1шт.

8

47867779

BRACKET

1шт.

9

47867778

BRACKET

1шт.

10

44906584

RETAINER COLLAR,12mm ID

4шт.

11

84534676

BRACKET

1шт.

12

16296924

FLANGE BOLT,Hvy Hex, M6 x 14mm, Cl 8.8, Full Thd

5шт.

13

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

1шт.

14

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

1шт.

15

5101741

QUICK MALE COUPLING

2шт.
