(37.120.180) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC

Запчасти Case IH FARMALL 110U (37.120.180) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

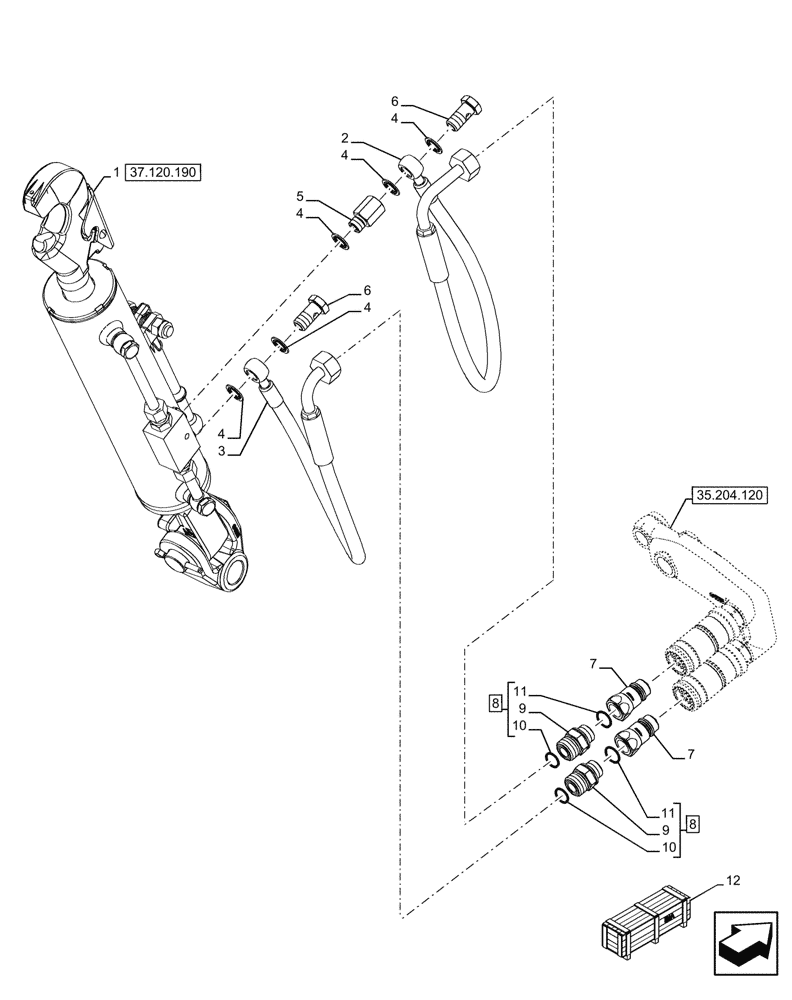

Схема запчастей Case IH FARMALL 110U - (37.120.180) - VAR - 758325 - 3 POINT HITCH, REAR, TOP LINK, HYDRAULIC (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
35.204.120
6
4
5
7
7
6
1
4
9
10
9
3
10
8
4
11
2
8
4
12
4
11
37.120.190
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47575593

LINK

ASSY

1шт.

2

47754416

HYDRAULIC HOSE

1шт.

3

47754407

HYDRAULIC HOSE

1шт.

4

5167639

SEALING WASHER,13.4mm ID x 24mm OD x 1.5mm Thk

5шт.

5

47755517

SPACER

1шт.

6

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

7

83972881

COUPLING

2шт.

8

5185524

HYD CONNECTOR

ASSY, Incl 9 - 11

2шт.

9

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

2шт.

10

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

11

14457380

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

2шт.

12

718212010

DIA KIT, TRACTOR

Hydraulic Top Link, Incl 1 - 11

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
