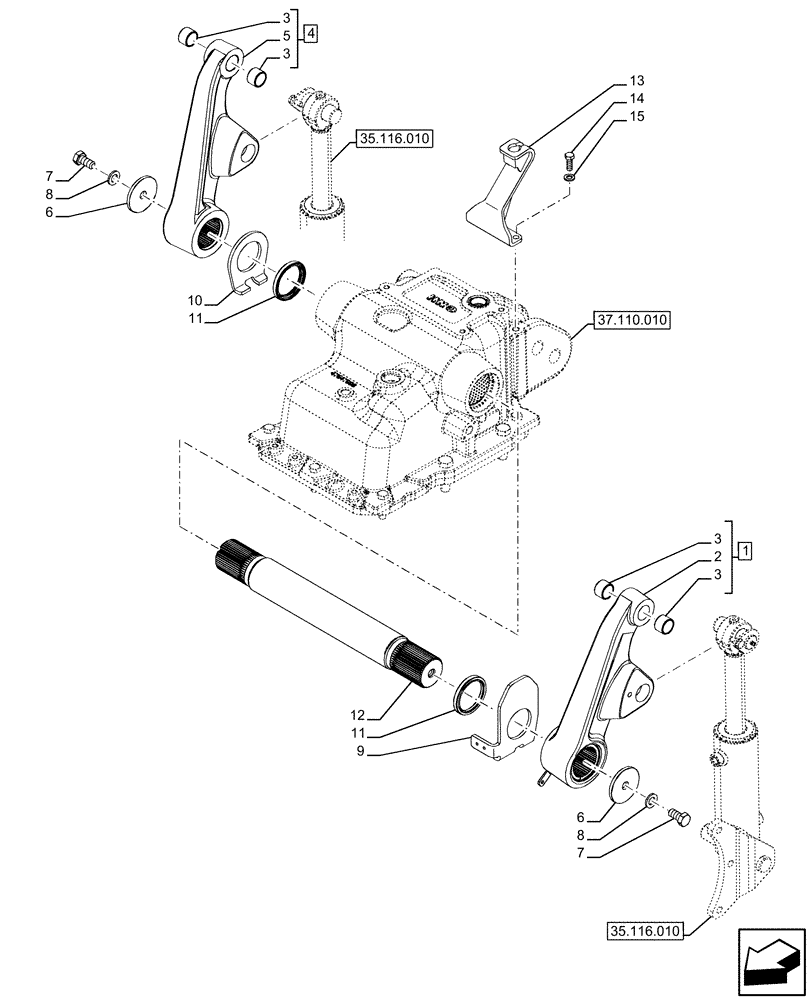

Запчасти Case IH FARMALL 110U (37.110.020) - VAR - 758289 - REMOTE CONTROL VALVE, LIFT ARM (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47125529

LIFT ARM

LH, ASSY,Incl 2, 3 (Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Arm, Incl in 1

1шт.

3

5153140

BUSHING,25.25mm ID x 30mm OD x 20mm L

4шт.

4

47125530

LIFT ARM

RH, ASSY,Incl 3 (Qty 2), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Arm, Incl in 4

1шт.

6

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

7

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

8

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

2шт.

9

47872936

SPACER

LH

1шт.

10

84316817

SPACER,60.00mm ID x 95.00mm OD x 6.00mm

RH

1шт.

11

5146367

SEAL,60mm ID x 75mm OD x 8.5mm Thk

2шт.

12

5188863

ROCKSHAFT,46T, 520mm L

1шт.

13

47769101

BRACKET

1шт.

14

15540521

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

15

81865231

WASHER,13mm ID x 24mm OD x 3mm Thk

2шт.
