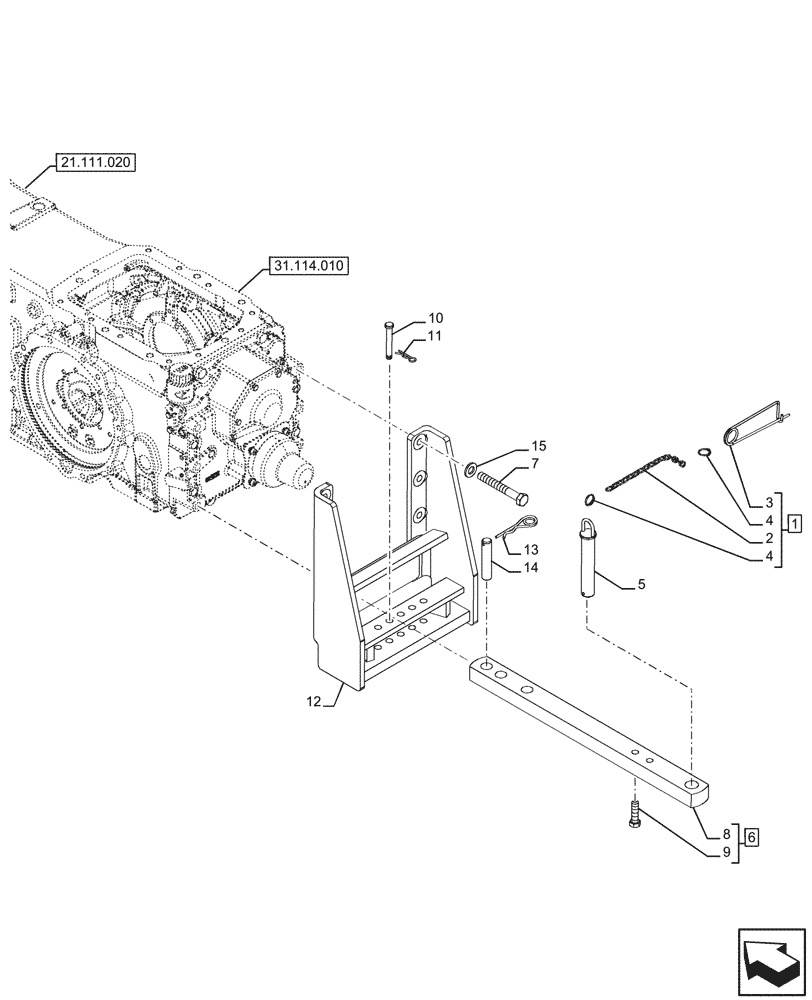

Запчасти Case IH FARMALL 110U (37.100.020) - VAR - 330912 - DRAWBAR AND HITCH, EU (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

5163732

PIN,32mm OD x 182mm L

ASSY, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Chain, Incl in 1

1шт.

3

5152004

HAIR PIN COTTER,195mm L

1шт.

4

44901192

SNAP RING,25mm ID

2шт.

5

5155491

PIVOT

1шт.

6

84129985

DRAWBAR

ASSY, Incl 8 - 9

1шт.

7

15981834

BOLT,Hex, M16 x 1.5 x 120mm, Cl 10.9

6шт.

8

5180877

DRAWBAR,780mm L x 60mm W x 40mm Thk

1шт.

9

11119133

BOLT,Hex, M16 x 60, 10.9, Full Thd

2шт.

10

5181758

PIN,16mm OD x 119.5mm L

2шт.

11

82026318

COTTER PIN,1/8 x 2 5/16

2шт.

12

5199428

SUPPORT

1шт.

13

82000094

SPRING,40mm OD x 142mm L

1шт.

14

82006933

PIN,28mm OD x 134mm L

1шт.

15

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.
