(35.204.630) - VAR - 744711 - PIPE, W/ ELECTROHYDRAULIC REMOTES, NA

Запчасти Case IH FARMALL 110U (35.204.630) - VAR - 744711 - PIPE, W/ ELECTROHYDRAULIC REMOTES, NA (35) - HYDRAULIC SYSTEMS

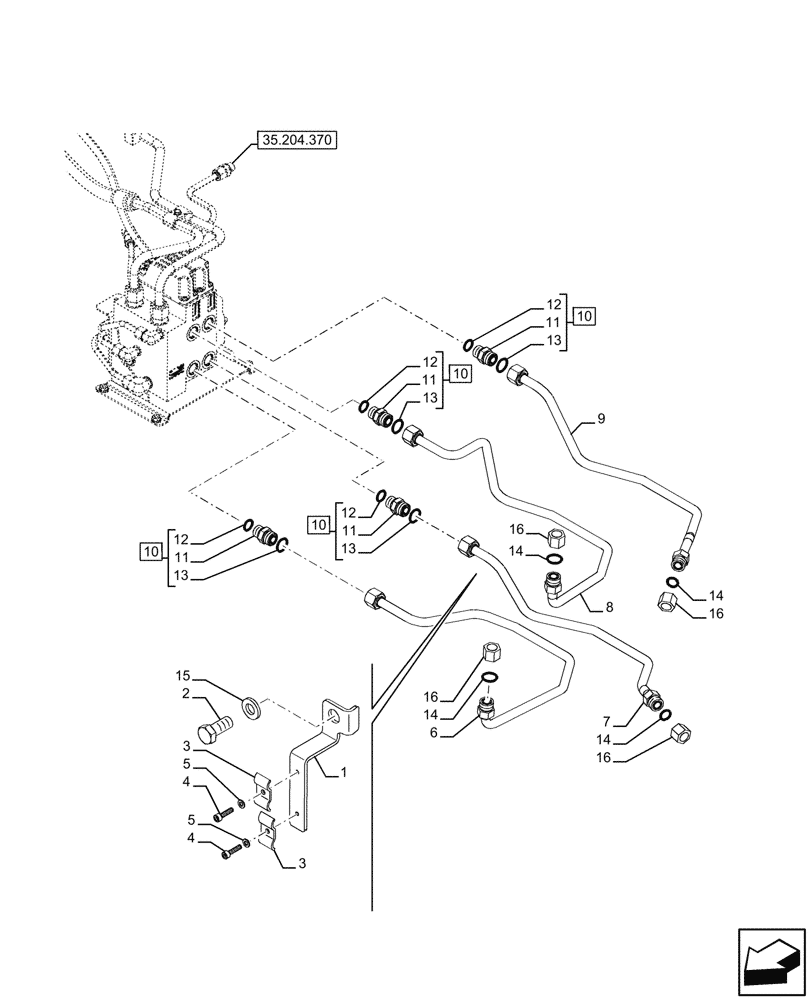

Схема запчастей Case IH FARMALL 110U - (35.204.630) - VAR - 744711 - PIPE, W/ ELECTROHYDRAULIC REMOTES, NA (35) - HYDRAULIC SYSTEMS
35.204.370
5
11
16
12
12
7
6
8
14
3
10
4
13
13
10
16
16
10
12
10
9
11
16
1
13
14
11
5
12
11
4
13
2
15
14
3
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47701402

BRACKET

1шт.

2

86500658

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9

1шт.

3

84475431

BRACKET

2шт.

4

9832203

HEX SOC SCREW,M6 x 25mm, Cl 8.8, Full Thd

2шт.

5

11194374

WASHER,Belleville, 6.4mm ID x 12mm OD

2шт.

6

47714506

PIPE

Loader Lower

1шт.

7

47822144

PIPE

Loader Bucket Dump

1шт.

8

47714508

PIPE

Loader Raise

1шт.

9

47822142

PIPE

Loader Bucket Scoop

1шт.

10

86579680

HYD CONNECTOR,1"-14 ORFS x M22 x 1.5mm ORB

ASSY, Incl 21 - 23

4шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

1шт.

12

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

14

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

15

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

1шт.

16

9840576

CAP,1" - 14 ORFS

4шт.
