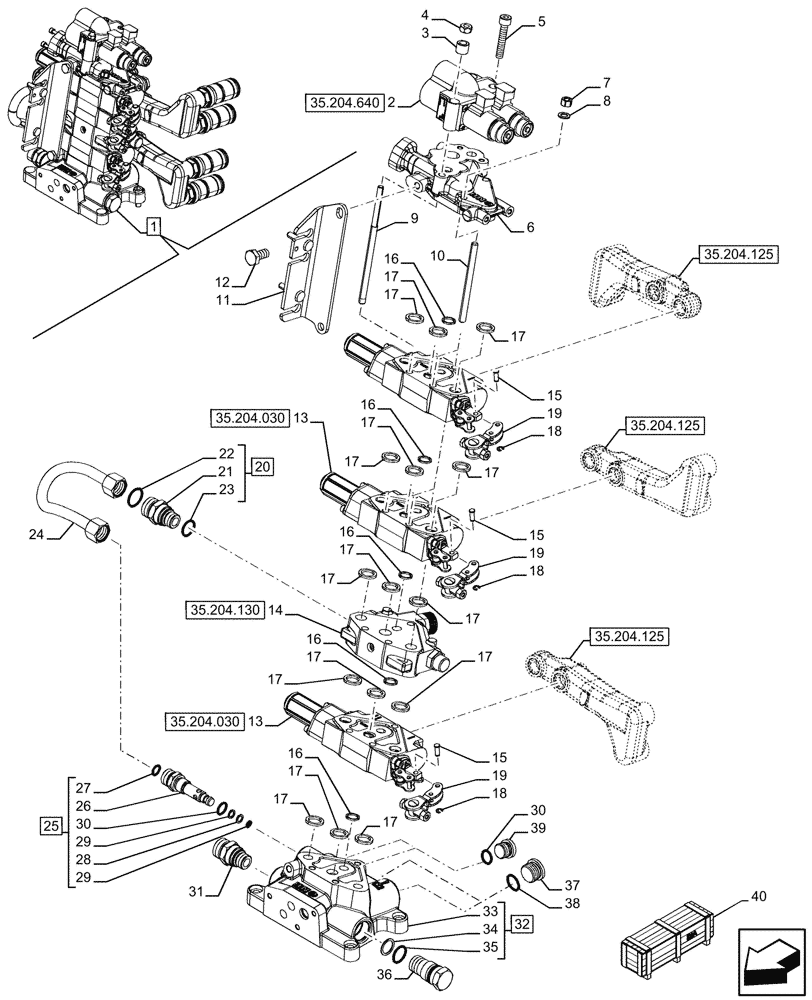

Запчасти Case IH FARMALL 110U (35.204.120) - VAR - 334121 - 3 REMOTE CONTROL VALVES, REAR, W/ FLOW CONTROL, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

47556435

DISTRIBUTOR

With Flow Control, ASSY, Incl 2 - 39

1шт.

2

47671314

INCHING VALVE

ASSY

1шт.

3

47136143

SPACER,8.5mm ID x 14mm OD x 12mm L

1шт.

4

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

5

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

6

87396841

FLANGE

1шт.

7

5116857

NUT,3/8" - 24

2шт.

8

12648304

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.

9

47374943

STUD

1шт.

10

5151505

THREADED ROD,3/8" - 24 x 8-1/4"

2шт.

11

47866445

BRACKET

1шт.

12

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

13

84406706

REMOTE CONTROL VALVE

3шт.

14

87397107

CONTROL VALVE

1шт.

15

5172456

PIN,6mm OD x 20mm L

3шт.

16

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

5шт.

17

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

15шт.

18

11087776

CIRCLIP,Ext., M6, BLO

3шт.

19

47787867

LEVER

3шт.

20

82016498

HYD CONNECTOR,M22 x 1.5 DIN, 1" - 14 ORFS

ASSY, Incl 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 20

1шт.

22

83901443

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

23

82016732

SEAL,19.6mm ID x 24.3mm OD x 1.5mm Thk

1шт.

24

84597417

PIPE

1шт.

25

84594342

FITTING

ASSY, Incl 26 - 30

1шт.

26

NSS

NOT SOLD SEPARAT

Fitting, Incl in 25

1шт.

27

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

14456880

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

1шт.

29

84603792

BACK-UP RING

2шт.

30

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

31

47592023

HYD CONNECTOR

1шт.

32

84563608

MANIFOLD VALVE

ASSY, Incl 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

Valve, Incl in 31

1шт.

34

10263360

SEAL,20.3mm ID x 26mm OD x 1mm Thk

1шт.

35

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

36

84563631

PLUG,M28 x 1.5

1шт.

37

10119011

PLUG,M27 x 2 x 20, Cl5.8

2шт.

38

14438185

O-RING,24mm ID x 3mm

2шт.

39

10118811

PLUG,M22 x 1.5 x 14, Cl5.8

2шт.

40

719195090

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe and Oil Collecton Bottle, Incl 18

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

40

719405070

DIA KIT, TRACTOR

Flow Control, Incl 9 - 11, 14, 16 (Qty 1), 17 (Qty 3), 20, 24, 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
