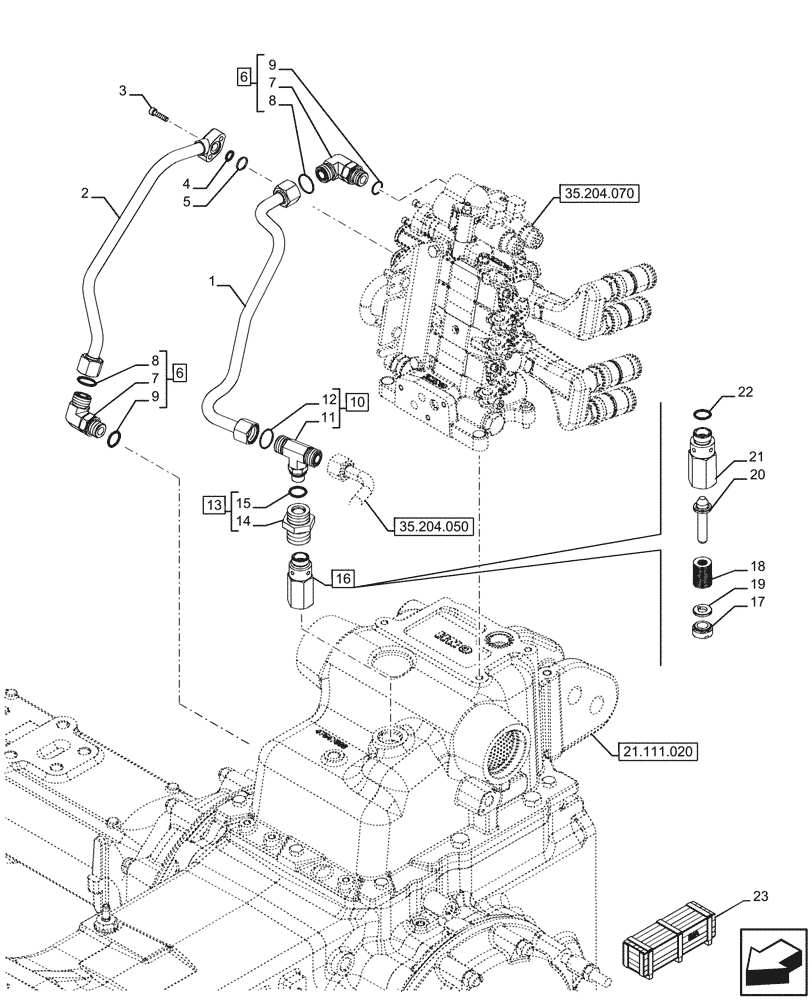

Запчасти Case IH FARMALL 110U (35.204.090) - VAR - 334121 - 3 REMOTE CONTROL VALVES, REAR, OIL, LINE (35) - HYDRAULIC SYSTEMS

1

47559978

PIPE

From

1шт.

2

47557297

PIPE

Return

1шт.

3

14305421

HEX SOC SCREW,M6 x 25mm, Cl 8.8

2шт.

4

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

1шт.

5

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

6

5194728

90 ELBOW

ASSY, Incl 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

Elbow, Incl in 6

1шт.

8

5185512

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

9

14438085

O-RING,19.3mm ID x 2.4mm

1шт.

10

87016910

TEE,1"-14 ORFS x M18 x 1.5 ORB Br

ASSY, Incl 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

1шт.

12

14437985

O-RING,15.3mm ID x 2.4mm

1шт.

13

47570810

HYD CONNECTOR

ASSY, Incl 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

Connector, Incl in 13

1шт.

15

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

16

5117739

VALVE PRESSURE RELIE,M20 x 1.5

ASSY, Incl 17 - 22

1шт.

17

NSS

NOT SOLD SEPARAT

Ferrule, Incl in 16

1шт.

18

586761

VALVE SPRING,10.2mm ID x 20mm OD x 1.1mm Thk

22шт.

19

4951123

SPRING WASHER,10.1mm ID x 20.4mm OD x 3mm Thk

1шт.

20

NSS

NOT SOLD SEPARAT

Stay, Incl in 16

1шт.

21

NSS

NOT SOLD SEPARAT

Valve, Incl in 16

1шт.

22

14457381

O-RING,17.12mm ID x 2.62" Width

1шт.

23

719195090

DIA KIT, TRACTOR

3 Remote - 2 Coupler De Luxe and Oil Collecton Bottle, Incl 1, 2, 4, 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

23

719405070

DIA KIT, TRACTOR

Flow Control, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
