Запчасти Case IH FARMALL 110U (25.100.040) - VAR - 330308 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, HOUSING (25) - FRONT AXLE SYSTEM

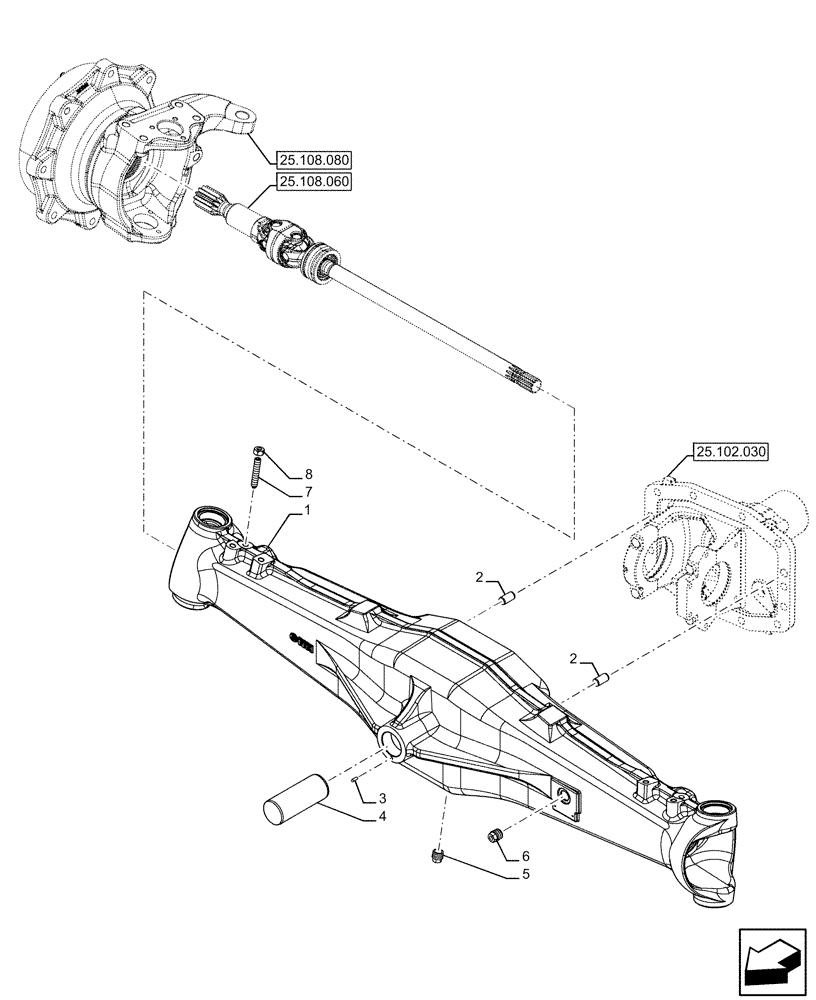

Схема запчастей Case IH FARMALL 110U - (25.100.040) - VAR - 330308 - 4WD FRONT AXLE, W/ ELECTROHYDRAULIC DIFFERENTIAL LOCK, HOUSING (25) - FRONT AXLE SYSTEM
25.108.080
2
5
1
8
3
2
4
6
7
25.108.060
25.102.030

Артикул

Название

Примечание

Количество

1

47422598

AXLE HOUSING

1шт.

2

5174376

DOWEL,M16 x 30

2шт.

3

4966244

PIN,5mm OD x 15mm L

1шт.

4

47123533

PIN,52mm OD x 131mm L

1шт.

5

14324411

MAGNETIC PLUG,M22 x 1.50, Cl 5.8, ZND

1шт.

6

14326211

PLUG,M22 x 1.50, R50, ZND

3шт.

7

87309002

SET SCREW

2шт.

8

16101511

NUT,M12 x 1.25, Cl 8

2шт.

Выбрано товаров: 8
