Запчасти Case IH FARMALL 110U (23.314.060) - VAR - 744558, 758288, 758385, 758578 - 4WD DRIVESHAFT FOR SUSPENDED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM

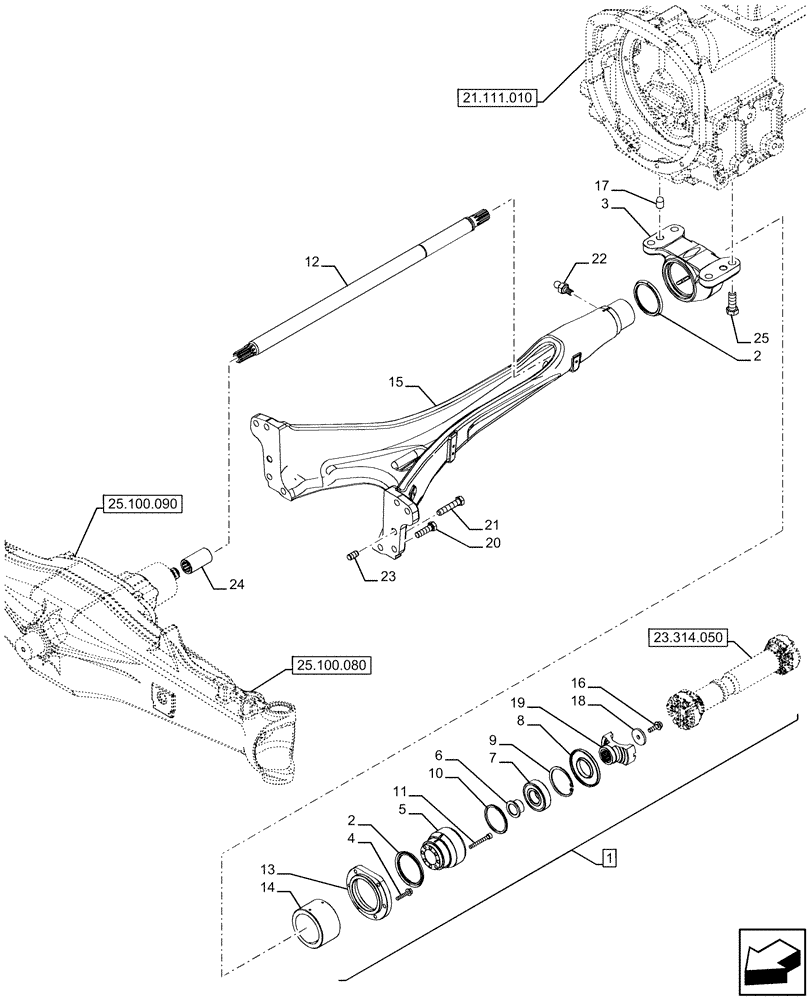

Схема запчастей Case IH FARMALL 110U - (23.314.060) - VAR - 744558, 758288, 758385, 758578 - 4WD DRIVESHAFT FOR SUSPENDED FRONT AXLE (23) - FOUR WHEEL DRIVE SYSTEM
21.111.010
22
2
14
4
20
16
17
24
15
5
23
7
21
8
3
2
10
6
12
25
13
11
18
19
1
9
25.100.090
23.314.050
25.100.080

Артикул

Название

Примечание

Количество

1

47860653

SUPPORT

ASSY, Incl 2 - 19

1шт.

2

5197676

SEAL,80mm ID x 100mm OD x 5mm Thk

2шт.

3

47811096

BEARING HOUSING

1шт.

4

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

6шт.

5

47800168

BEARING HOUSING

1шт.

6

47800169

WASHER

1шт.

7

47643622

BALL BEARING

1шт.

8

47800171

BEARING COVER

1шт.

9

84246778

RING

1шт.

10

47800170

WASHER

1шт.

11

14359321

HEX SOC SCREW,M8 x 65mm, Cl 8.8

8шт.

12

47860659

DRIVE SHAFT,893.7mm L

1шт.

13

47800165

BEARING COVER

1шт.

14

84263314

SPHERICAL BEARING

1шт.

15

47800158

ARM

1шт.

16

857-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 10.9

1шт.

17

82020394

PIN,M18 x 30.00mm

2шт.

18

47686113

WASHER

1шт.

19

47800173

FLANGE

1шт.

20

15981031

BOLT,Hex, M16 x 1.5 x 55mm, Cl 10.9

6шт.

21

11254134

SCREW,Hex, M16 x 1.5 x 80mm, Cl 10.9

2шт.

22

13407211

LUBE NIPPLE,M10 x 1

1шт.

23

5174376

DOWEL,M16 x 30

2шт.

24

4997313

SLEEVE,26mm ID x 40mm OD x 74mm L, 10T

1шт.

25

15984324

SCREW,Hex, M18 x 1.5 x 50mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 25
