(23.314.040) - VAR - 330448 - FRONT DRIVE SHAFT, PROTECTION, WATERPROOF

Запчасти Case IH FARMALL 110U (23.314.040) - VAR - 330448 - FRONT DRIVE SHAFT, PROTECTION, WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM

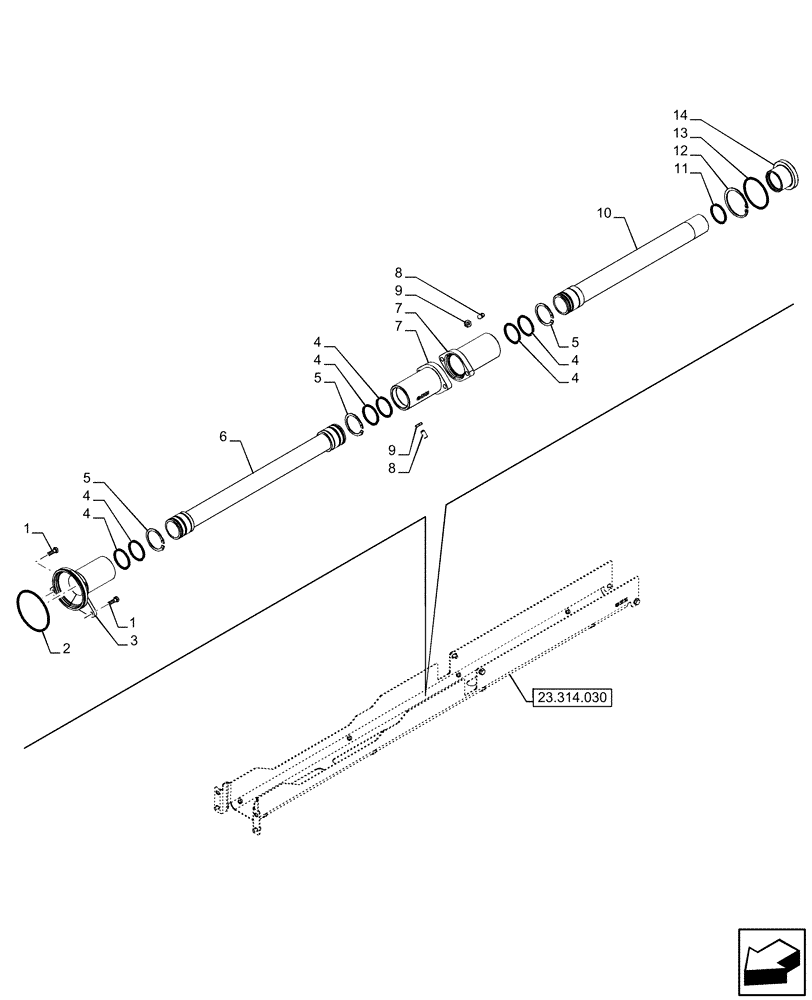

Схема запчастей Case IH FARMALL 110U - (23.314.040) - VAR - 330448 - FRONT DRIVE SHAFT, PROTECTION, WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM
23.314.030
6
14
4
7
13
4
8
1
5
3
4
12
1
4
9
5
11
10
2
4
7
4
9
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

2

14461480

O-RING,4.237" ID x 0.103" Thk

1шт.

3

47124556

SLEEVE,57mm ID x 66mm OD x 104.0mm L

1шт.

4

14459480

O-RING,0.103" Thk x 1.987" ID, -136, Cl 5, 75 Duro

6шт.

5

11069676

SNAP RING,M56, Ext

3шт.

6

84605292

GUARD

1шт.

7

87534292

FLANGE

2шт.

8

13809631

SET SCREW,Hex Soc, M10 x 20mm, Flat Pt

2шт.

9

10791024

THIN NUT,Thin, M10 x 1.25, Cl 05

2шт.

10

47364677

GUARD

1шт.

11

14459381

O-RING,48.9mm ID x 2.62" Width

1шт.

12

11061976

SNAP RING,M80, Int

1шт.

13

14465380

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

14

47125477

BUSHING

1шт.
