(23.314.030) - VAR - 758609 - FRONT DRIVE SHAFT, PROTECTION, LESS WATERPROOF

Запчасти Case IH FARMALL 110U (23.314.030) - VAR - 758609 - FRONT DRIVE SHAFT, PROTECTION, LESS WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM

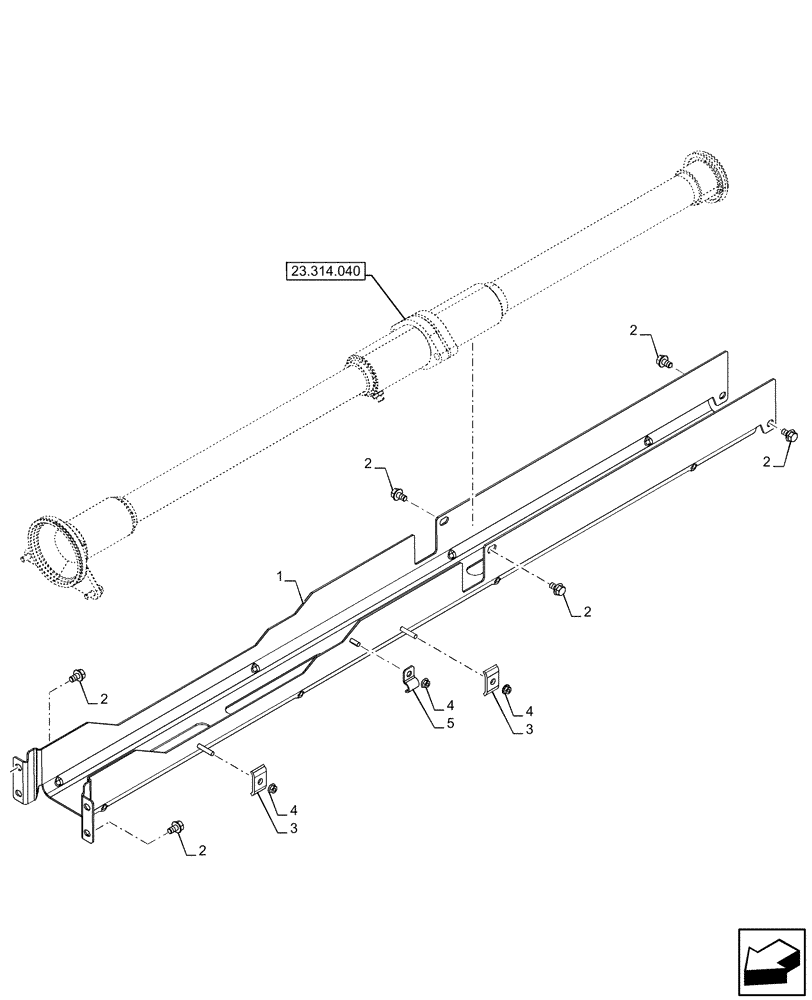

Схема запчастей Case IH FARMALL 110U - (23.314.030) - VAR - 758609 - FRONT DRIVE SHAFT, PROTECTION, LESS WATERPROOF (23) - FOUR WHEEL DRIVE SYSTEM
23.314.040
2
4
4
2
2
3
4
2
2
2
5
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47859514

SHIELD

1шт.

2

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

6шт.

3

84519154

HOSE CLAMP

2шт.

4

14059211

FLANGE NUT,M6 x 1, Flg, Cl 8

3шт.

5

84168456

CLAMP BRACKET

1шт.
