Запчасти Case IH FARMALL 110U (23.314.010) - VAR - 758609 - FRONT DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM

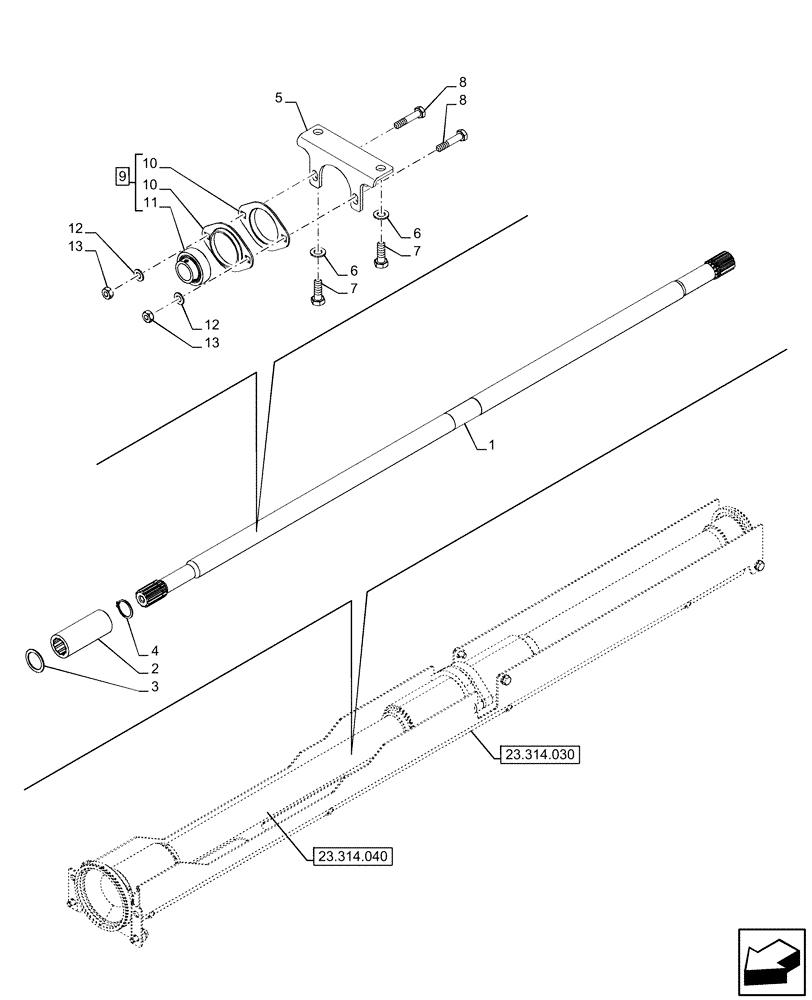

Схема запчастей Case IH FARMALL 110U - (23.314.010) - VAR - 758609 - FRONT DRIVE SHAFT (23) - FOUR WHEEL DRIVE SYSTEM
23.314.030
6
6
10
7
9
12
12
5
7
11
8
8
1
10
2
3
4
13
13
23.314.040

Артикул

Название

Примечание

Количество

1

84567825

SHAFT

1шт.

2

84582085

SPLINED COUPLING

1шт.

3

4997301

SHIM,29mm ID x 40mm OD x 2.2mm Thk

1шт.

3

5158051

SHIM,29.6mm ID x 40mm OD x 1.5mm Thk

1.5mm

1шт.

3

5158052

SHIM,29.6mm ID x 40mm OD x 1.9mm Thk

1.9mm

1шт.

3

4997302

SHIM,29mm ID x 40mm OD x 2.5mm Thk

2.5mm

1шт.

3

4997303

SHIM,29mm ID x 40mm OD x 2.8mm Thk

2.8mm

1шт.

3

4997304

SHIM,29.6mm ID x 40mm OD x 3mm Thk

3mm

1шт.

3

4997305

SHIM,29.6mm ID x 40mm OD x 3.3mm Thk

3.3mm

1шт.

3

4997306

SHIM,29.6mm ID x 40mm OD x 3.7mm Thk

3.7mm

1шт.

3

4997308

SHIM,29.6mm ID x 40mm OD x 4.3mm Thk

4.3mm

1шт.

3

4997307

SHIM,29.6mm ID x 40mm OD x 4mm Thk

4mm

1шт.

4

11067776

SNAP RING,M29, Ext

1шт.

5

5178213

SUPPORT

1шт.

6

11197974

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

7

15540524

SCREW,Hex, M12 x 1.25 x 35mm, Cl 8.8

2шт.

8

15970711

SCREW,M10 x 1.25 x 25

2шт.

9

5167098

BEARING ASSY,30mm ID

ASSY, Incl 10, 11

1шт.

10

5174610

SHELL

2шт.

11

5174609

BALL BEARING

1шт.

12

11198574

BELLEVILLE WASHER,Belleville, M10.5

2шт.

13

12164714

NUT,M10 x 1.25, Cl 8

2шт.

Выбрано товаров: 22
