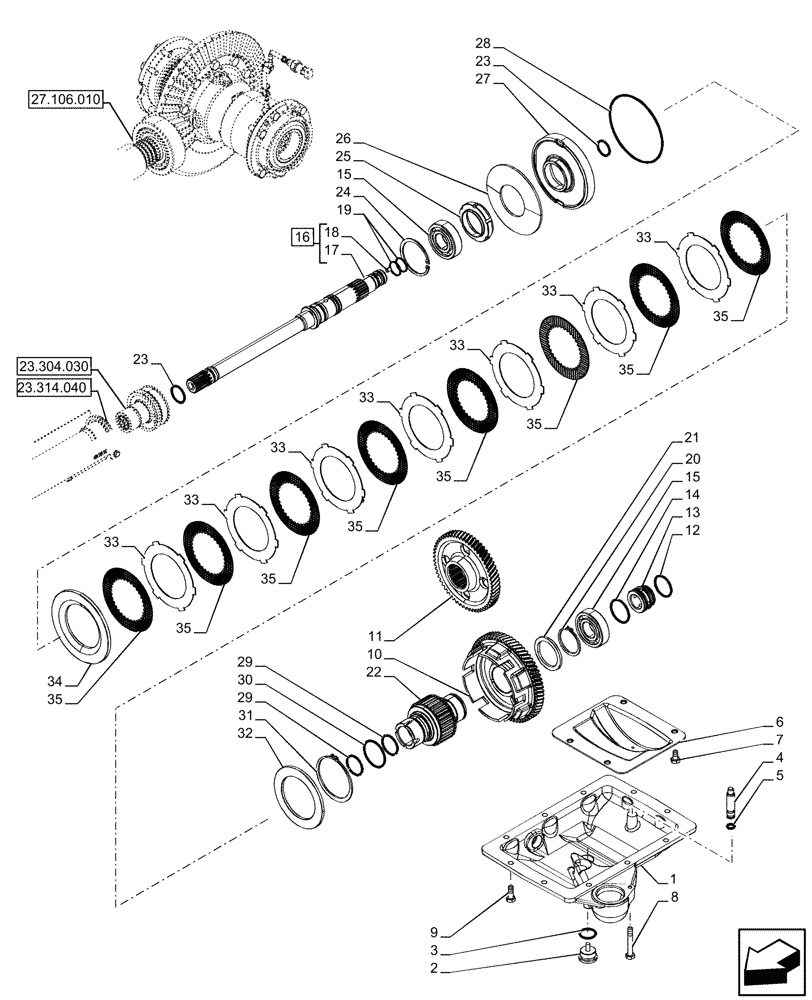

Запчасти Case IH FARMALL 110U (23.304.020) - VAR - 330333 - GEAR, CLUTCH, 4WD (23) - FOUR WHEEL DRIVE SYSTEM

1

84584612

COVER

1шт.

2

87687750

MAGNETIC PLUG,Hex, M33 X 2 X 16mm

1шт.

3

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

4

47126672

PIN,10.5mm OD x 46.6mm L

1шт.

5

14452880

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

1шт.

6

47415918

COVER

1шт.

7

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

8

15888824

BOLT,Hex, M10 x 1.25 x 70mm, Cl 8.8

2шт.

9

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

8шт.

10

47547698

GEAR

1шт.

11

47546919

GEAR

1шт.

12

14458881

O-RING,1.612" ID x 0.103" Width

1шт.

13

47126668

MANIFOLD

1шт.

14

14459180

O-RING,45.69mm ID x 2.62"

1шт.

15

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

2шт.

16

47547700

SHAFT

ASSY, Incl 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Shaft, Incl in 16

1шт.

18

13789620

SET SCREW,Hex Soc, M8 x 10mm, Flat Pt

1шт.

19

5185502

PISTON RING,28.5mm ID x 32mm OD x 2.1mm Thk

2шт.

20

5193966

CIRCLIP

1шт.

21

5193862

THRUST WASHER

1шт.

22

47879863

1шт.

23

14458080

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

1шт.

24

11061976

SNAP RING,M80, Int

1шт.

25

5193860

NUT,Rd, M58,1.5mm Pitch

1шт.

26

9845126

BELLEVILLE WASHER,71.5mm ID x 157mm OD x 4mm Thk

1шт.

27

5193859

PISTON

1шт.

28

14462080

O-RING,0.103" Thk x 5.737" ID, -162, Cl 5, 75 Duro

1шт.

29

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

30

14459680

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

31

5139462

SNAP RING,3mm Thk

1шт.

32

47126552

CLUTCH PLATE

1шт.

33

84177629

DRIVE PLATE,99mm ID x 152mm OD x 1.5mm Thk

1шт.

34

47126551

CLUTCH PLATE,97.3-97.5mm ID, 161mm OD

1шт.

35

5163904

DISC

8шт.
