Запчасти Case IH FARMALL 110U (21.133.030) - VAR - 334114, 334117, 334775, 334779, 334780, 390430 - TRANSMISSION, SEMI-POWERSHIFT, EXTERNAL CONTROL, ROD & FORKS (21) - TRANSMISSION

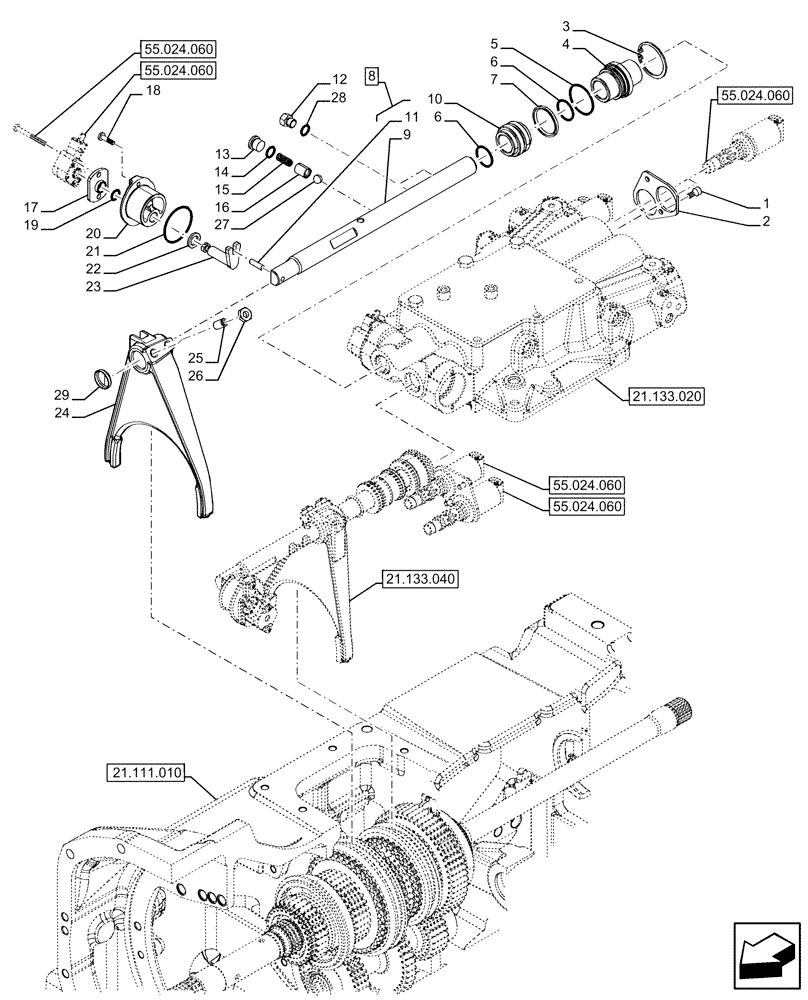

Схема запчастей Case IH FARMALL 110U - (21.133.030) - VAR - 334114, 334117, 334775, 334779, 334780, 390430 - TRANSMISSION, SEMI-POWERSHIFT, EXTERNAL CONTROL, ROD & FORKS (21) - TRANSMISSION
21.133.020
7
20
8
27
1
14
12
19
11
21
18
3
15
26
4
28
25
29
5
9
24
13
10
23
17
16
2
6
22
6
55.024.060
55.024.060
55.024.060
55.024.060
55.024.060
21.133.040
21.111.010

Артикул

Название

Примечание

Количество

1

14305124

HEX SOC SCREW,M6 x 12mm, Cl 8.8, Full Thd

2шт.

2

82022595

BRACKET

1шт.

3

11060276

SNAP RING,M47, Int

Int

1шт.

4

5199732

PLUG

1шт.

5

14458680

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

6

81902618

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

2шт.

7

5175009

SEALING RING,34.55mm ID x 42.02mm OD x 3.2mm Thk

1шт.

8

5199730

ROD

ASSY, Incl 9, 11

1шт.

9

NSS

NOT SOLD SEPARAT

Rod, Incl in 8

1шт.

10

82015192

PISTON

1шт.

11

82015193

PIN

1шт.

12

9672438

PLUG,7/16" - 20 ORB

2шт.

13

9625178

PLUG,9/16" - 18 ORB

1шт.

14

81845037

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

83407013

SPRING

1шт.

16

81864220

PLUNGER

1шт.

17

5178541

PLATE

1шт.

18

13274421

SCREW,Pozidriv Pan Hd, M5 x 20mm, Cl 8.8

1шт.

19

14456980

O-RING,10.77mm ID x 2.62mm

1шт.

20

47135914

HOUSING

1шт.

21

14464280

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

22

14499601

WASHER,13mm ID x 20mm OD x 2.5mm Thk

1шт.

23

5178335

SHAFT,12mm OD x 48.5mm L

1шт.

24

82007504

SHIFTER FORK

1шт.

25

82895780

SET SCREW,less Hex Socket, M10 x 20mm

2шт.

26

82895198

NUT,Jam, Hex, M10, 5mm High, CL 04

2шт.

27

88210005

BALL,10mm OD

1шт.

28

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

29

83417039

PLUG

1шт.

Выбрано товаров: 29
