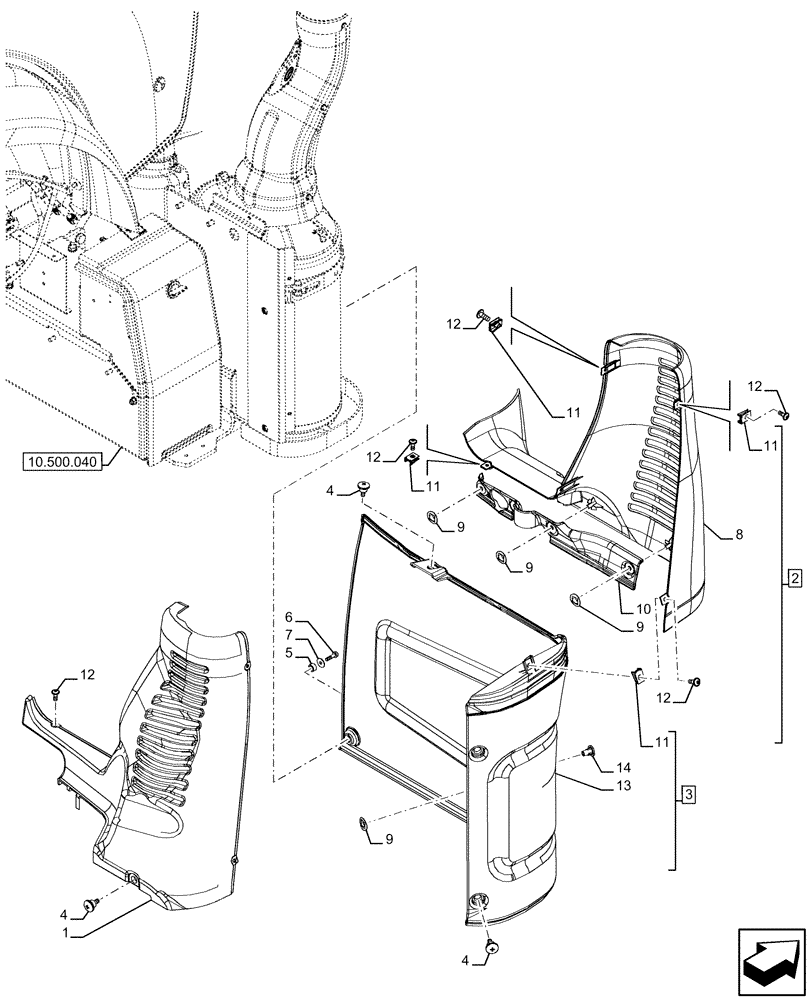

Запчасти Case IH FARMALL 110U (10.500.100) - VAR - 336795, 342003, 342004, 744711 - COVER, EXHAUST SYSTEM (10) - ENGINE

1

84473421

TRIM PANEL

1шт.

2

47533794

TRIM

ASSY, Incl 8, 9 (Qty 3), 10, 11 (Qty 3)

1шт.

3

84513746

PADDING

ASSY, Incl 9 (Qty 1), 11 (Qty 1), 13, 14

1шт.

4

84348915

SCREW,Pan Hd Phil, M6 x 20mm, w/Thermal Insulator

5шт.

5

47528906

SPACER,10.3mm ID x 15.9mm OD x 7.9mm L

1шт.

6

84187823

SCREW,Torx, Pan HD, M6 x 25mm, Cl 4.8

1шт.

7

12647701

WASHER,6.15mm ID x 21mm OD x 1mm Thk

1шт.

8

NSS

NOT SOLD SEPARAT

Trim, Incl in 2

1шт.

9

14228374

COVER PLATE

5шт.

10

84487544

TRIM

1шт.

11

14189071

SPRING NUT,M6

5шт.

12

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

5шт.

13

NSS

NOT SOLD SEPARAT

Trim, Incl in 3

1шт.

14

84402052

BLANK-OFF PLUG,19mm OD

1шт.
