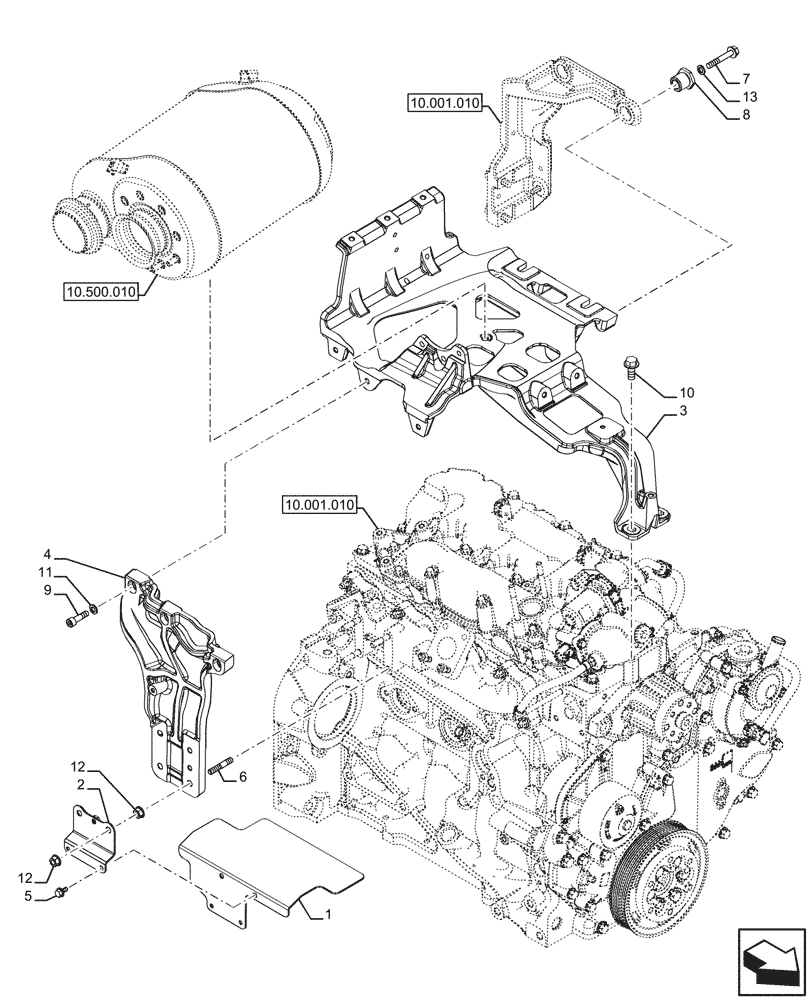

Запчасти Case IH FARMALL 110U (10.500.020) - VAR - 334773, 391263 - EXHAUST SYSTEM, CATALYST, SUPPORT (10) - ENGINE

1

47572665

HEAT SHIELD

1шт.

2

84530346

HEAT SHIELD

1шт.

3

47503302

SUPPORT

1шт.

4

47547805

SUPPORT

1шт.

5

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

2шт.

6

13517320

STUD,M8 x 1.25 x 35.00mm, Cl 8.8, PLN

4шт.

7

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

8

84529819

BUSHING,M24 x 1.5

2шт.

9

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

10

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

11

11198074

BELLEVILLE WASHER,M8 Bolt Size x 15mm OD x 1.8mm Thk

3шт.

12

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

6шт.

13

12628901

WASHER,8.15mm ID x 25mm OD x 4mm Thk

2шт.
