Запчасти Case IH FARMALL 110C (82.100.AF[16]) - VAR - 336744, 336746 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR, W/DIVERTER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

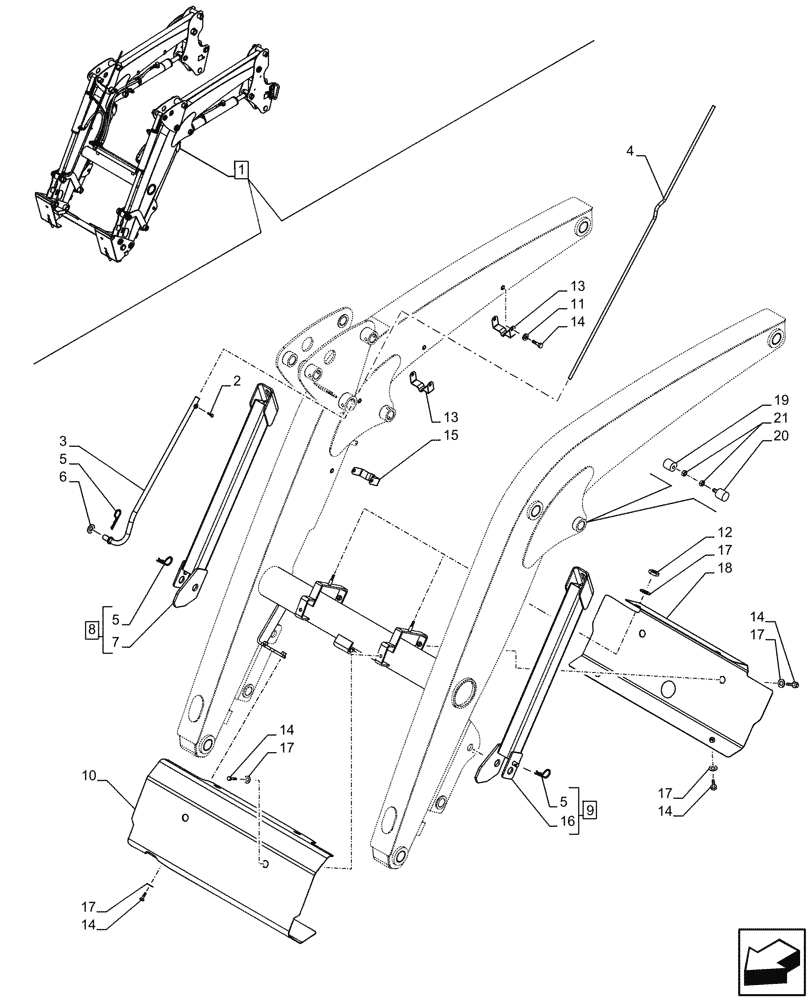

Схема запчастей Case IH FARMALL 110C - (82.100.AF[16]) - VAR - 336744, 336746 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR, W/DIVERTER, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
17
14
15
1
5
13
4
18
14
21
3
14
10
19
11
5
8
13
17
6
20
2
17
14
16
17
5
9
7
12
17
14

Артикул

Название

Примечание

Количество

1

47696359

LOADER

ASSY, Incl 2 - 21

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AA (07), 82.100.AF (15), 82.100.BG (07), 82.300.AB (07), 82.300.AX (11), 82.300.AY (07), 90.108.AB (14), 90.108.AC (33)

1шт.

SSL Tool Attach.

1шт.

1

47696344

LOADER

ASSY, Incl 2 - 21

1шт.

See also Loader Components in Figure 35.701.AX (07), 35.701.CB (09), 35.723.AA (11), 35.723.AB (07), 35.723.AF (05), 55.415.AQ (06), 82.100.AA (07), 82.100.AF (15), 82.100.BG (07), 82.300.AB (07), 82.300.AX (12), 82.300.AY (07), 90.108.AB (14), 90.108.AC (33)

1шт.

EU Tool Attach.

1шт.

2

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

3

47657214

CONNECTING LINK

1шт.

4

47406830

INDICATOR

1шт.

5

84408821

ROLL PIN

3шт.

6

84410936

WASHER

1шт.

7

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.

8

84525214

LEVER

RH, ASSY, Incl, 5 (Qty 1), 7

1шт.

9

84525220

LEVER

LH, ASSY, Incl, 5 (Qty 1), 16

1шт.

10

47518600

COVER

1шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

6шт.

12

16104117

NUT,Hex, M8 x 1.25

2шт.

13

47608234

RETAINER

2шт.

14

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

14шт.

15

47608232

COVER

1шт.

16

NSS

NOT SOLD SEPARAT

Lever, Incl in 9

1шт.

17

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

10шт.

18

47518602

COVER

1шт.

19

84599118

CUSHION

1шт.

20

84599040

RUBBER PAD

1шт.

21

15896224

NUT,Hex, M6

2шт.

Выбрано товаров: 26
