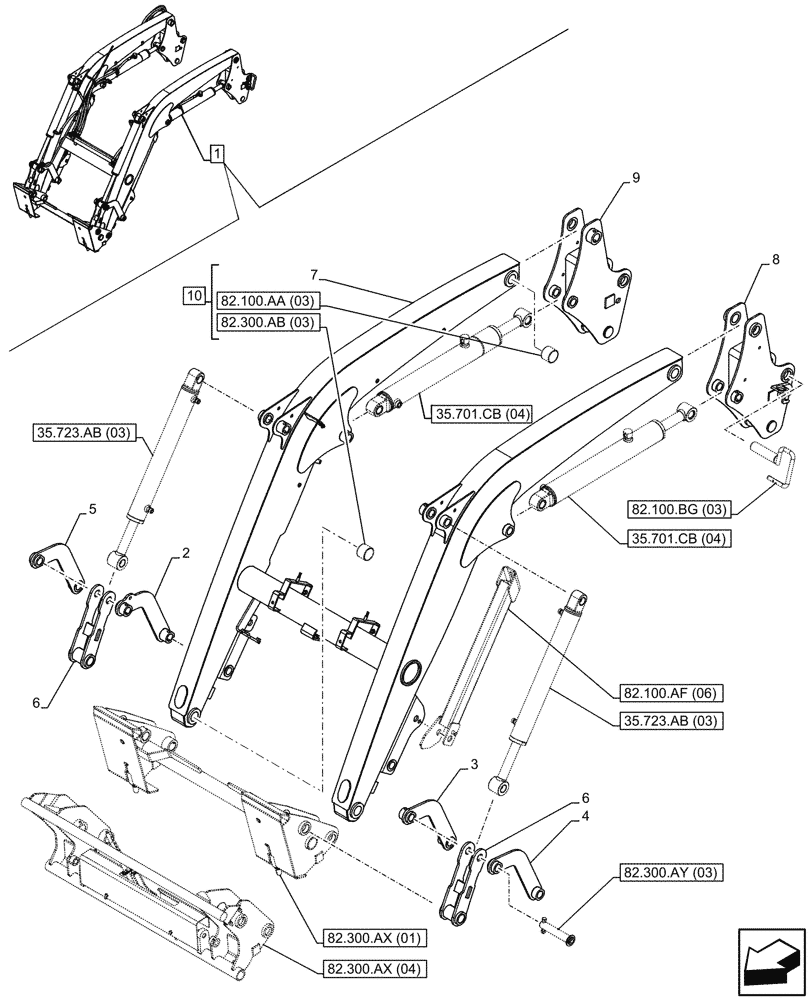

Запчасти Case IH FARMALL 110C (82.100.AF[05]) - VAR - 336732, 336914 - LOADER ARM, ARM/LIFTING DEVICE, W/DIVERTER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

1

47592515

LOADER

ASSY, Incl 2 - 10

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (05), 82.100.AF (06), 82.100.BG (03), 82.300.AB (03), 82.300.AX (01), 82.300.AY (03), 90.108.AB (09), 90.108.AC (26)

1шт.

SSL Tool Attach.

1шт.

1

47592511

LOADER

ASSY, Incl 2 - 10

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (05), 82.100.AF (06), 82.100.BG (03), 82.300.AB (03), 82.300.AX (04), 82.300.AY (03), 90.108.AB (09), 90.108.AC (26)

1шт.

EU Tool Attach.

1шт.

2

84393710

LEVER

1шт.

3

84393715

LEVER

LH, Outer

1шт.

4

84393699

LEVER

LH, Inner

1шт.

5

84393693

LEVER

RH, Outer

1шт.

6

84393751

ROD

2шт.

7

NSS

NOT SOLD SEPARAT

Incl in 10

1шт.

8

84393652

SUPPORT

LH

1шт.

9

84393650

SUPPORT

RH

1шт.

10

47608238

LOADER ARM

ASSY , Incl 7

1шт.

See also Arm Components in Figure 82.100.AA (03), 82.300.AB (03)

1шт.
