Запчасти Case IH FARMALL 110C (82.100.AF[02]) - VAR - 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

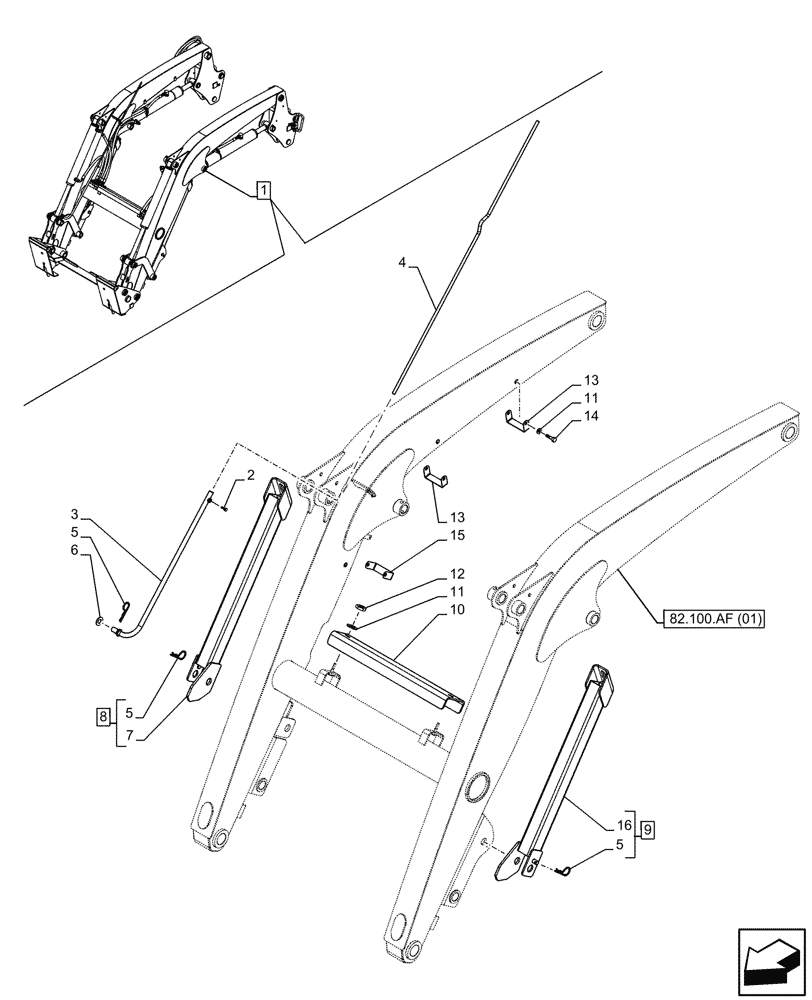

Схема запчастей Case IH FARMALL 110C - (82.100.AF[02]) - VAR - 336732, 336914 - LOADER ARM, LOCKING DEVICE, LEVEL INDICATOR, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET
82.100.af (01)
3
9
5
13
2
10
5
12
5
6
4
8
14
11
15
13
16
11
1
7

Артикул

Название

Примечание

Количество

1

84321724

LOADER

ASSY, Incl 2 - 16

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.701.CB (03), 35.723.AA (03), 35.723.AB (02), 82.100.AA (02), 82.100.AF (01), 82.100.BG (01), 82.300.AB (02), 82.300.AX (01), 82.300.AY (02), 90.108.AB (09), 90.108.AC (26)

1шт.

SSL Tool Attach.

1шт.

1

47556494

LOADER

ASSY, Incl 2 - 16

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.701.CB (03), 35.723.AA (03), 35.723.AB (02), 82.100.AA (02), 82.100.AF (01), 82.100.BG (01), 82.300.AB (02), 82.300.AX (04), 82.300.AY (02), 90.108.AB (09), 90.108.AC (26)

1шт.

EU Tool Attach.

1шт.

2

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

3

84405800

LEVEL INDICATOR

1шт.

4

47406830

INDICATOR

1шт.

5

84408821

ROLL PIN

3шт.

6

84410936

WASHER

1шт.

7

NSS

NOT SOLD SEPARAT

Lever, Incl in 8

1шт.

8

84525214

LEVER

ASSY, RH, Incl 5, 7

1шт.

9

84525220

LEVER

ASSY, LH, Incl 5, 16

1шт.

10

84393589

COVER

1шт.

11

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

8шт.

12

16104117

NUT,Hex, M8 x 1.25

2шт.

13

84405802

FIXING PLATE

2шт.

14

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

15

84526944

COVER

1шт.

16

NSS

NOT SOLD SEPARAT

Lever, Incl in 9

1шт.

Выбрано товаров: 21
