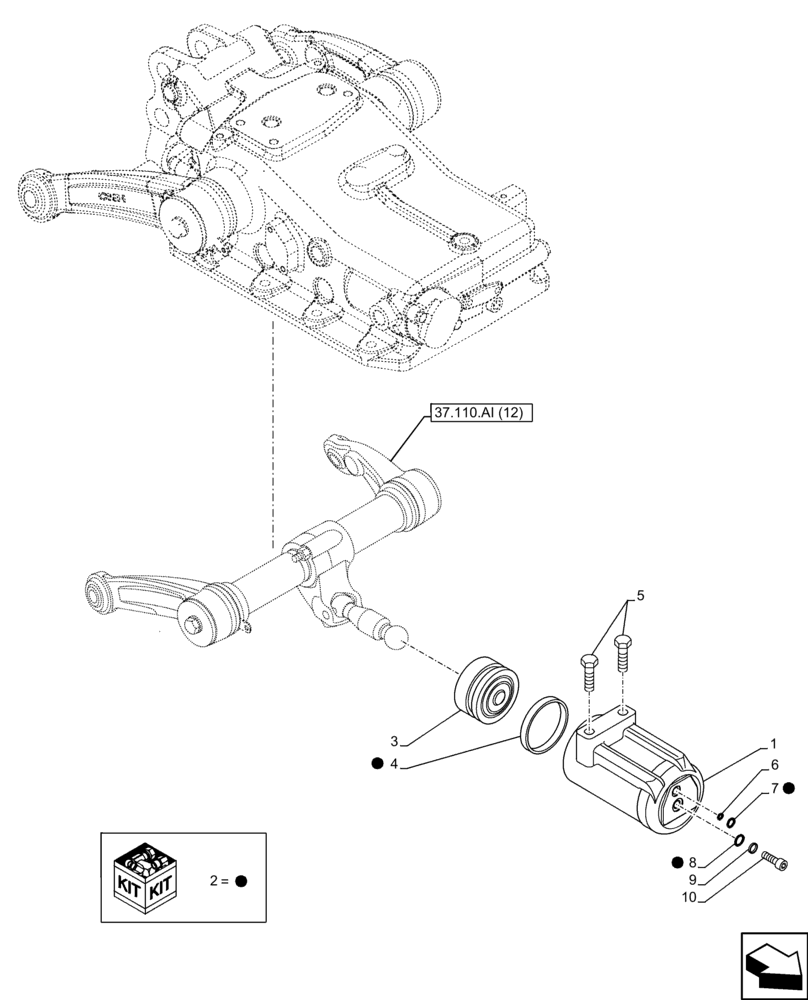

Запчасти Case IH FARMALL 110C (37.110.AQ[06]) - VAR - 743597 - REAR, HYDRAULIC LIFT, CYLINDER, PISTON, HI-LO, CAB (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84559718

CYLINDER

1шт.

2

84562043

GASKET KIT

Incl 4, 7, 8

1шт.

Include also Gaskets in Figure 37.110.AI (11), 35.114.AA (03)

1шт.

3

84559715

PISTON

1шт.

4

84559717

SEALING RING

1шт.

5

15981134

BOLT,Hex, M16 x 1.5 x 60mm, Cl 10.9

2шт.

6

84559792

SEALING RING

1шт.

7

14457189

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

8

84562173

O-RING,2.62mm Thk x 17.86mm ID

1шт.

9

84559776

WASHER, SEALING,14.7mm ID x 22mm OD x 1.5mm Thk

1шт.

10

84559782

SCREW,M14 x 70mm

1шт.
