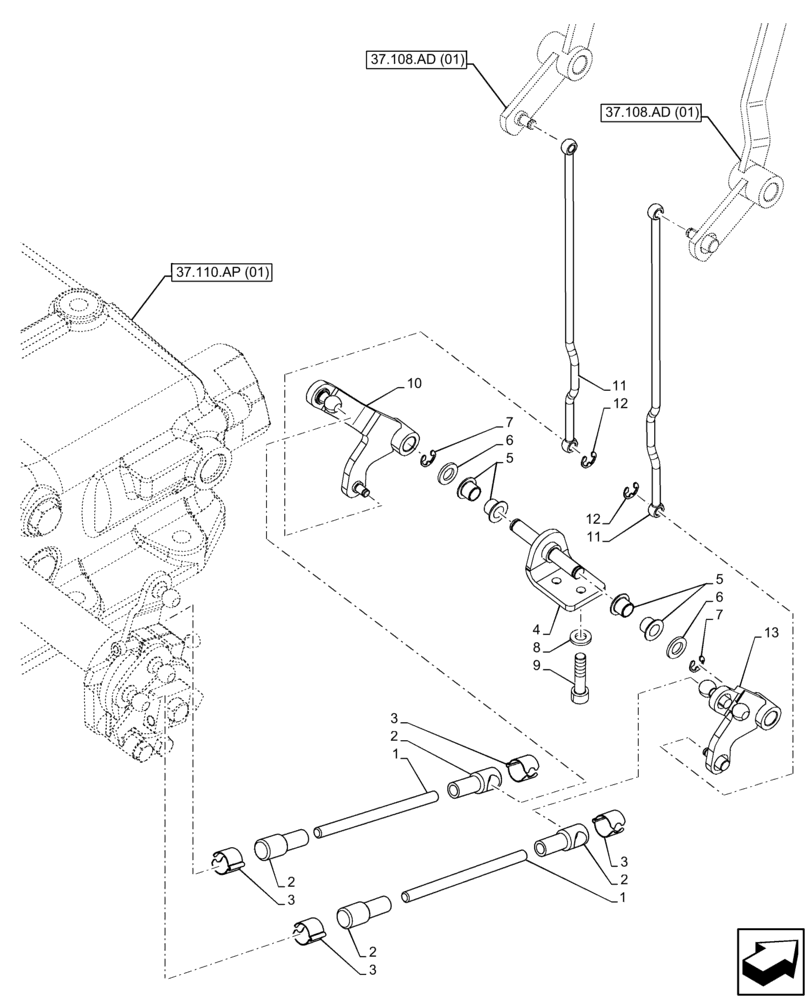

Запчасти Case IH FARMALL 110C (37.108.AE) - VAR - 332785, 390831, 743595, 743596 - REAR, HYDRAULIC LIFT, LINK & ROD (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

84416520

TIE-ROD

2шт.

2

10124511

BALL JOINT HEAD,M13 x 45mm L, M8 Thread

4шт.

3

10125574

CLAMP,13mm

4шт.

4

84309489

BRACKET

1шт.

5

84309424

BUSHING,10mm ID x 12mm OD x 10.0mm L

4шт.

6

14499504

WASHER,10.5mm ID x 18mm OD x 2mm Thk

2шт.

7

11087974

CIRCLIP,Ext., M8, DAC

E-Ring, Retaining Ext 8 mm

2шт.

8

11193871

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

9

14306621

HEX SOC SCREW,M8 x 35mm, Cl 8.8, Full Thd

2шт.

10

47513858

LEVER

1шт.

11

47528703

TIE-ROD

2шт.

12

11087674

WASHER,4mm, CST DAC

E-Ring, Retaining Ext 4 mm

2шт.

13

47513799

LEVER

1шт.
