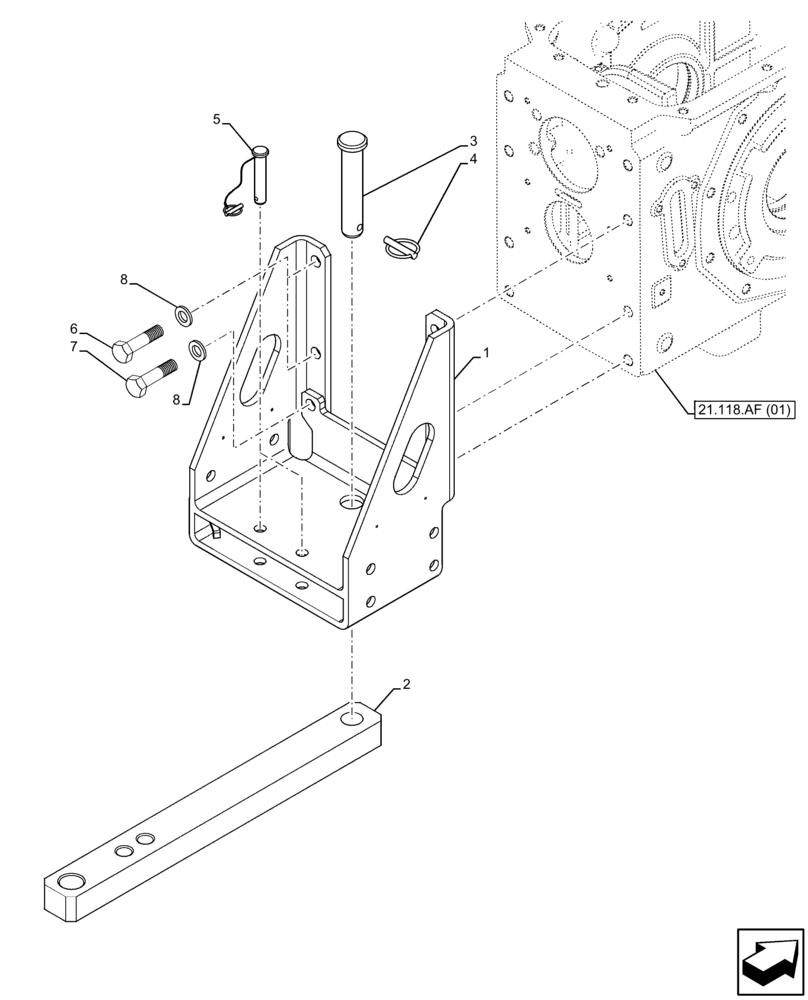

Запчасти Case IH FARMALL 110C (37.100.AA[02]) - VAR - 392905 - DRAWBAR SUPPORT, HI-LO (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47688609

DRAWBAR FRAME

1шт.

2

84482264

DRAWBAR,598mm L x 60mm W x 40mm Thk

1шт.

3

84340347

PIN,32mm OD x 93mm L

1шт.

4

47518809

HAIR PIN COTTER,6mm OD x 60mm L

1шт.

5

84340348

PIN,16mm OD x 93mm L

2шт.

6

11390534

BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9

4шт.

7

15840534

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

2шт.

8

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

6шт.
