(27.120.AI[07]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, HEAVY DUTY, 4WD, RH, HI-LO

Запчасти Case IH FARMALL 110C (27.120.AI[07]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, HEAVY DUTY, 4WD, RH, HI-LO (27) - REAR AXLE SYSTEM

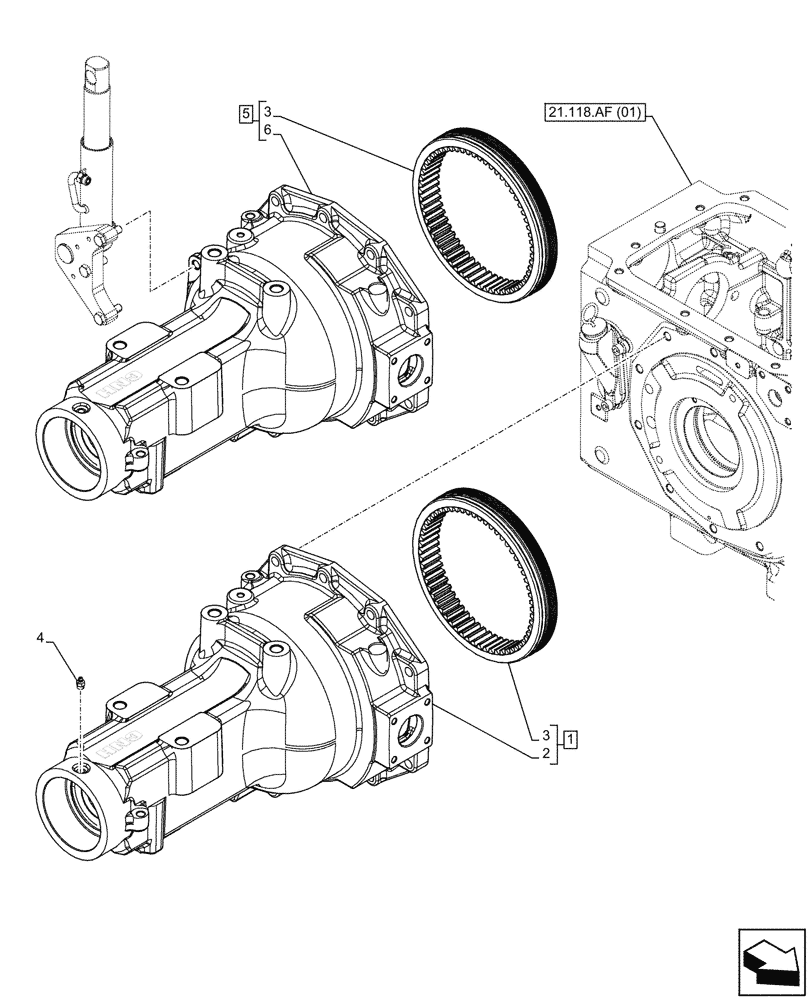

Схема запчастей Case IH FARMALL 110C - (27.120.AI[07]) - VAR - 333411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, HEAVY DUTY, 4WD, RH, HI-LO (27) - REAR AXLE SYSTEM
21.118.af (01)
3
6
1
5
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47368383

AXLE HOUSING

RH, ASSY, Incl 2, 3, Years: -24-FEB-16

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47362014

GEAR,60T

1шт.

4

13407211

LUBE NIPPLE,M10 x 1

2шт.

5

47871126

AXLE HOUSING

RH, ASSY, Incl 3, 6, Start Year: 25-FEB-16

1шт.

6

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.
