Запчасти Case IH FARMALL 110C (27.120.AI[04]) - VAR - 390411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, 4WD, LH, HI-LO (27) - REAR AXLE SYSTEM

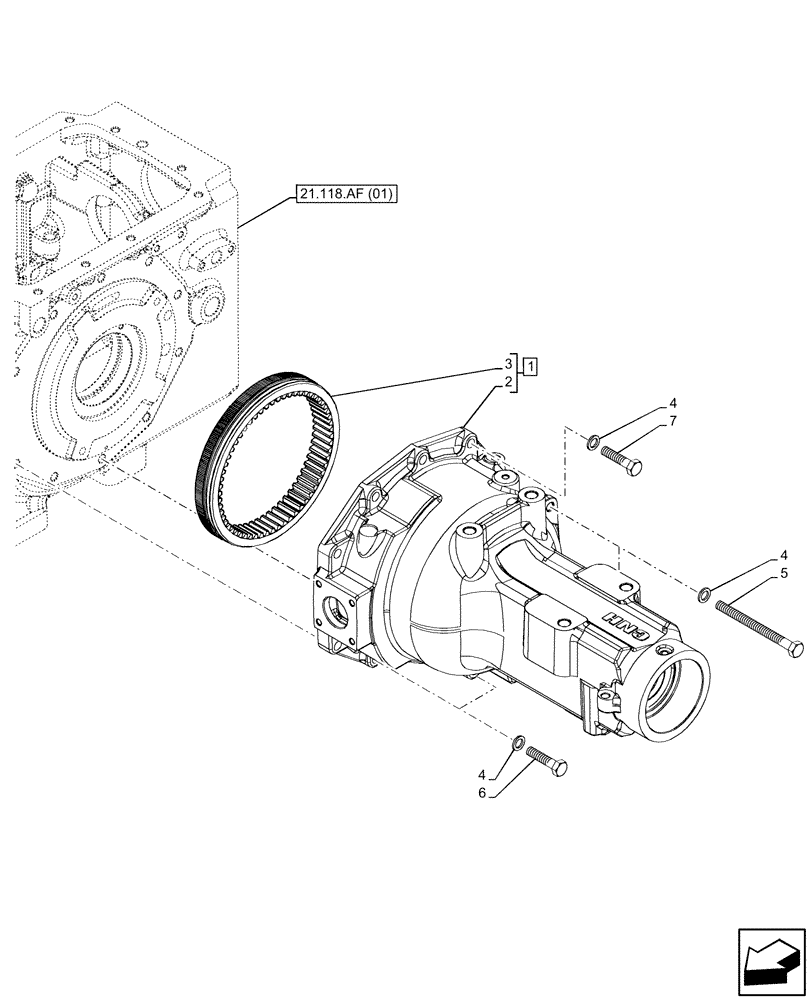

Схема запчастей Case IH FARMALL 110C - (27.120.AI[04]) - VAR - 390411 - REAR AXLE, FINAL DRIVE, AXLE HOUSING, 4WD, LH, HI-LO (27) - REAR AXLE SYSTEM
21.118.af (01)
1
2
7
4
3
4
5
6
4

Артикул

Название

Примечание

Количество

1

47368378

AXLE HOUSING

LH, ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

3

47362011

GEAR,60T

1шт.

4

87680388

WASHER,15mm ID x 23.4mm OD x 2.6mm Thk

10шт.

5

15978721

BOLT,Hex, M14 x 1.5 x 160mm, Cl 8.8

2шт.

6

15977524

BOLT,Hex, M14 x 1.5 x 60mm, Cl 8.8

2шт.

7

15860121

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

6шт.

Выбрано товаров: 7
