Запчасти Case IH FARMALL 110C (88.100.39[02]) - DIA KIT, WHEEL WEIGHT, REAR (6 X 32 KG) (88) - ACCESSORIES

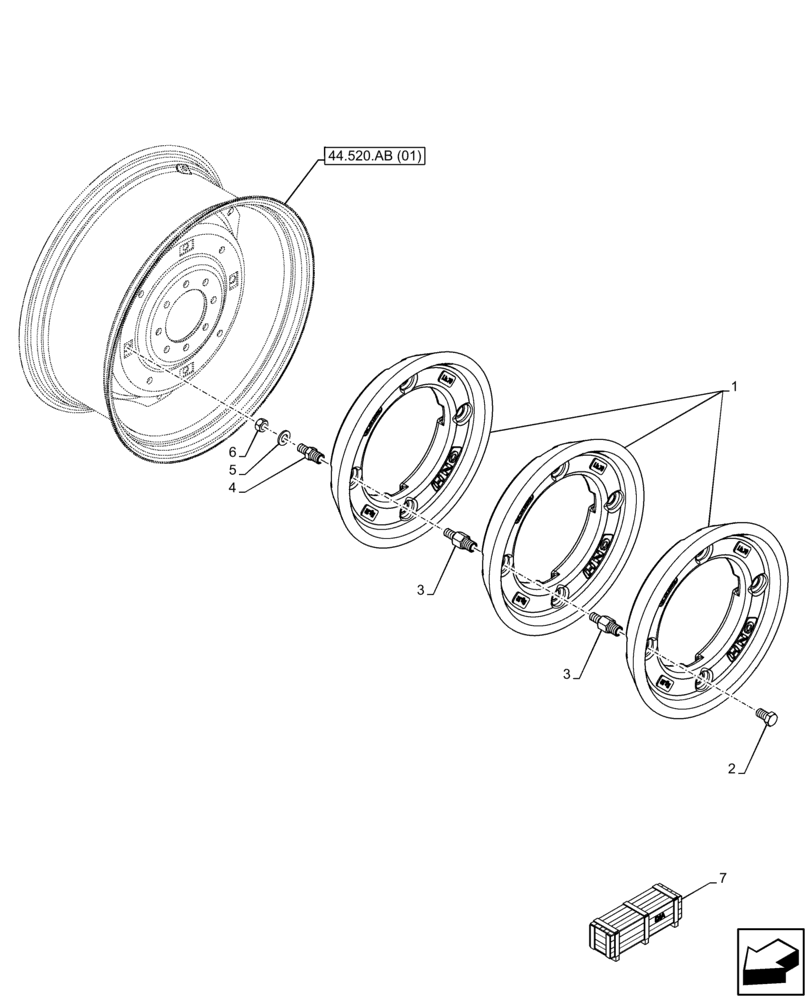

Схема запчастей Case IH FARMALL 110C - (88.100.39[02]) - DIA KIT, WHEEL WEIGHT, REAR (6 X 32 KG) (88) - ACCESSORIES
5
7
44.520.ab (01)
1
6
3
2
4
3

Артикул

Название

Примечание

Количество

1

47131265

WHEEL DISC,330mm Dia, 4 Bolts, CNH Dark Grey

6шт.

2

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

3

44018047

SCREW,M16 x 1.5 x 78mm

16шт.

4

44018046

SCREW,M16 x 1.5 x 60mm

8шт.

5

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

8шт.

6

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

8шт.

7

710465250

DIA KIT, TRACTOR

Rear Ballast (6 Rings 32Kg Each) for 24In Wheels, Incl 1 - 6

1шт.

Выбрано товаров: 7
