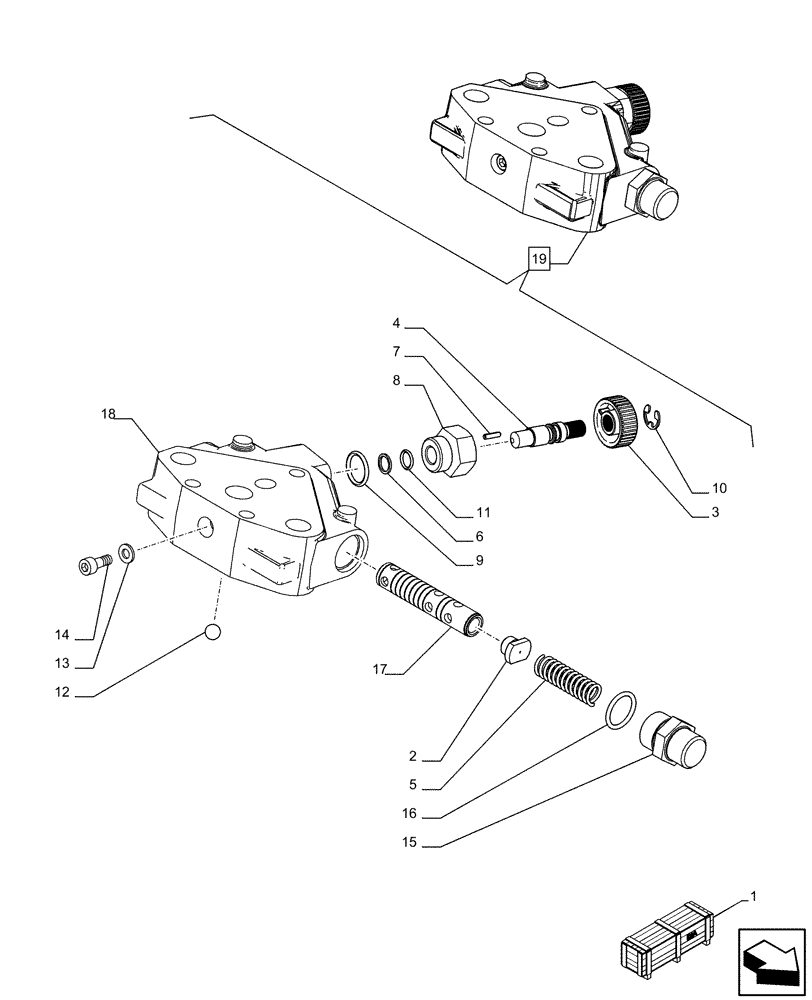

Запчасти Case IH FARMALL 110C (88.100.35[08]) - DIA KIT, 2ND REMOTE CONTROL VALVE, COMPONENTS (88) - ACCESSORIES

1

719405700

DIA KIT, TRACTOR

Flow Control Valve for MDC W/ 1 or 2 Rear Remotes, Incl 2 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

1

719405701

DIA KIT, TRACTOR

Flow Control Valve for EDC W/ 1 or 2 Rear Remotes, Incl 2 - 19

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

5153828

PLUG,M12 x 1.25

1шт.

3

5188535

KNOB

1шт.

4

5188543

PIN,12mm OD x 53mm L

1шт.

5

5153829

SPRING,14.5mm OD x 47.5mm L

1шт.

6

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

1шт.

7

14161770

LOCK PIN,M3 x 16, Slotted

1шт.

8

5153831

SEAT/SLOT,M12 x 1.25

1шт.

9

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

10

16160976

CIRCLIP,M9

1шт.

11

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

1шт.

12

20063480

BALL,Metal, 9.525mm, Gr 100

1шт.

13

10297860

SEAL,6mm ID x 12mm OD x 1.5mm Thk

1шт.

14

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

15

5153830

FLANGE COVER CAP,M24 x 1.5 x 38mm L

1шт.

16

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

17

NSS

NOT SOLD SEPARAT

Spool, Incl in 19

1шт.

18

NSS

NOT SOLD SEPARAT

Body, Incl in 19

1шт.

19

87397107

CONTROL VALVE

ASSY, Incl 2 - 18

1шт.
