Запчасти Case IH FARMALL 110C (82.300.AY[06]) - VAR - 336744, 336746 - LOADER BUCKET, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET

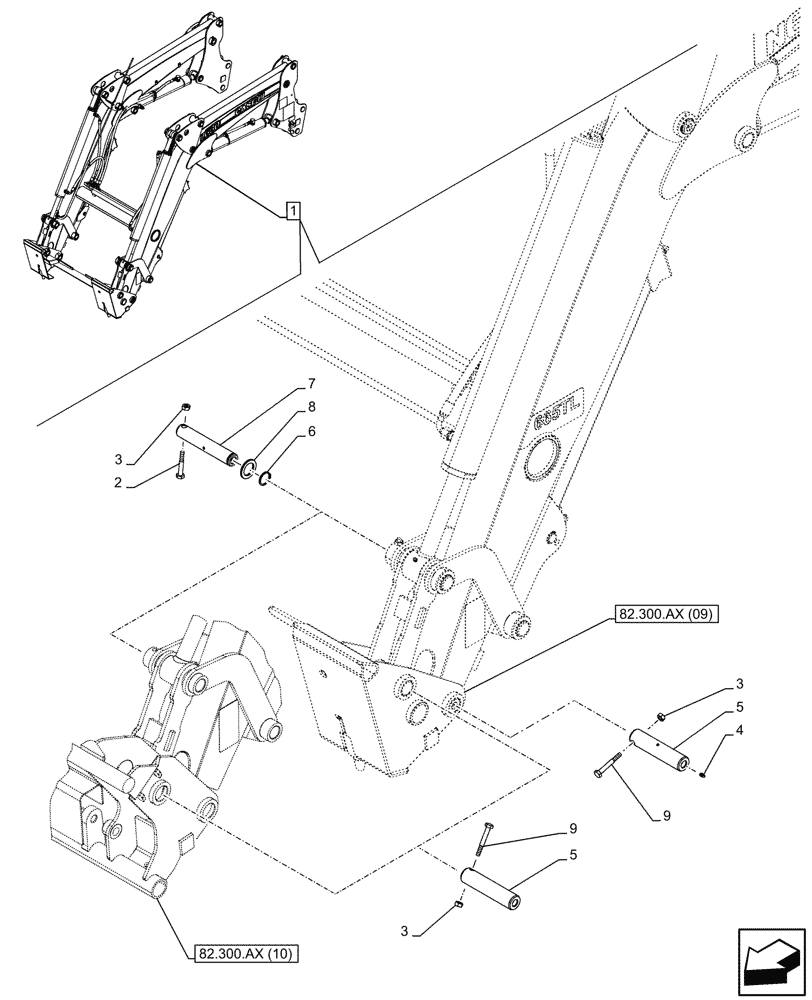

Схема запчастей Case IH FARMALL 110C - (82.300.AY[06]) - VAR - 336744, 336746 - LOADER BUCKET, PIN, W/ SELF-LEVELING (82) - FRONT LOADER & BUCKET
82.300.ax (10)
9
3
8
6
3
4
5
5
3
2
9
1
7
82.300.ax (09)

Артикул

Название

Примечание

Количество

1

47589358

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (06), 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AA (06), 82.100.AF (12), 82.100.AF (13), 82.100.BG (06), 82.300.AB (06), 82.300.AX (09), 90.108.AB (12), 90.108.AC (32)

1шт.

SSL Tool Attach

1шт.

1

47565458

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (06), 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AA (06), 82.100.AF (12), 82.100.AF (13), 82.100.BG (06), 82.300.AB (06), 82.300.AX (10), 90.108.AB (12), 90.108.AC (32)

1шт.

EU Tool Attach

1шт.

2

84575159

PIN

2шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

6шт.

4

87588865

FITTING,M6 x 1 x 12mm L

2шт.

5

84393572

PIN,38mm OD x 167.5mm L

2шт.

6

84406163

LOCKING RING

2шт.

7

84575160

PIN

2шт.

8

84406164

SPACER

2шт.

9

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

6шт.

Выбрано товаров: 14
