Запчасти Case IH FARMALL 110C (82.300.AY[03]) - VAR - 336732, 336914 - LOADER BUCKET, PIN, W/DIVERTER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

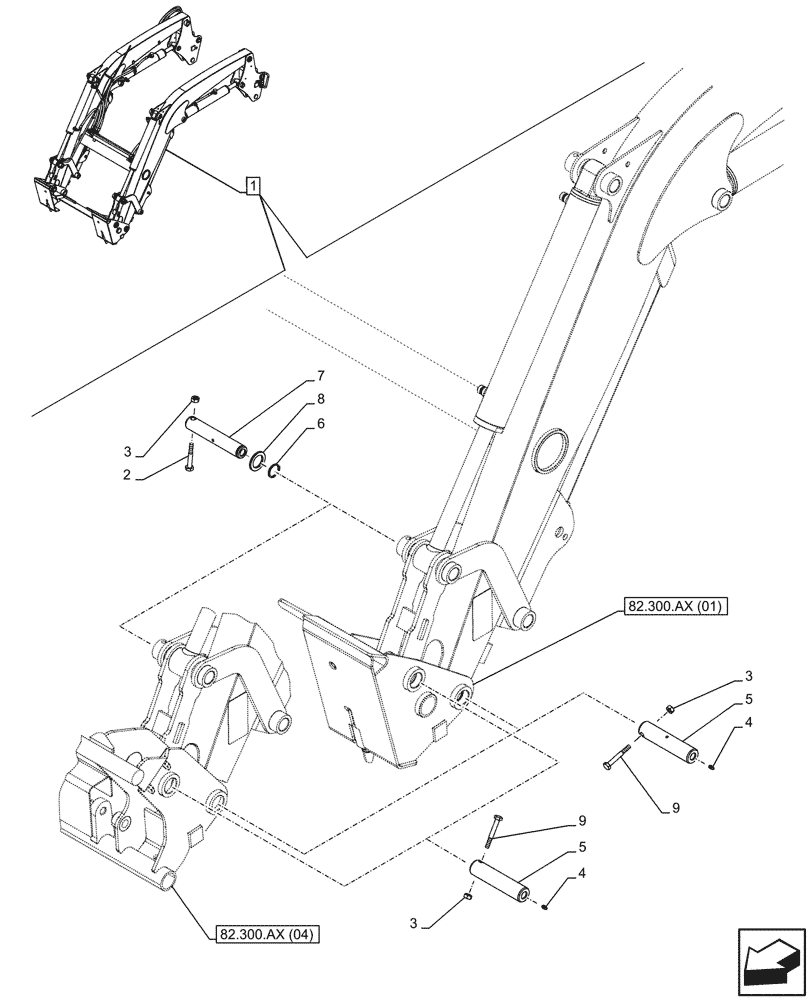

Схема запчастей Case IH FARMALL 110C - (82.300.AY[03]) - VAR - 336732, 336914 - LOADER BUCKET, PIN, W/DIVERTER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET
82.300.ax (04)
4
6
3
3
8
5
3
9
7
9
4
2
5
1
82.300.ax (01)

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.701.CB (04), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (05), 82.100.AF (06), 82.100.BG (03), 82.300.AB (03), 82.300.AX (01), 82.300.AY (03), 90.108.AC (26)

1шт.

SSL Tool Attach.

1шт.

1

47592511

LOADER

ASSY, Incl 2 - 9

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.701.CB (04), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (05), 82.100.AF (06), 82.100.BG (03), 82.300.AB (03), 82.300.AX (04), 82.300.AY (03), 90.108.AC (26)

1шт.

EU Tool Attach.

1шт.

2

1185622

BOLT,Hex, M10 x 65, 10.9

2шт.

3

12574511

LOCK NUT,M10 x 1.25, Cl 8

6шт.

4

87588865

FITTING,M6 x 1 x 12mm L

M6 x 1 x 12,00mm

4шт.

5

84393572

PIN,38mm OD x 167.5mm L

4шт.

6

84406125

LOCKING RING

2шт.

7

84393575

PIN

2шт.

8

84406124

SPACER

2шт.

9

86624979

BOLT,Hex, M10 x 75mm, Cl 10.9

4шт.

Выбрано товаров: 14
