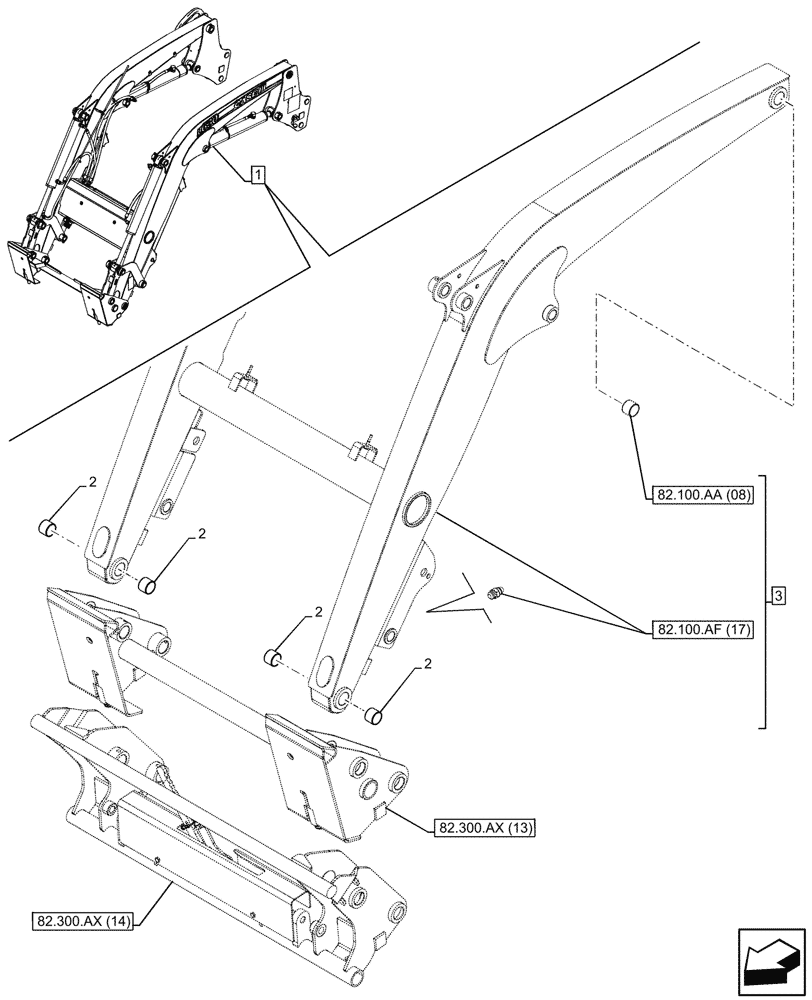

Запчасти Case IH FARMALL 110C (82.300.AB[08]) - VAR - 336740, 336742 - LOADER BUCKET, BUSHING, W/ DIVERTER, W/O SELF-LEVELING (82) - FRONT LOADER & BUCKET

1

47696354

LOADER

ASSY, Incl 2, 3

1шт.

See also Loader Components in Figure 35.701.AX (08), 35.701.CB (10), 35.723.AA (12), 35.723.AB (08), 35.723.AF (07), 55.415.AQ (08), 82.100.AA (08), 82.100.AF (17), 82.100.AF (18), 82.100.BG (08), 82.300.AX (13), 82.300.AY (08), 90.108.AB (15), 90.108.AC (35)

1шт.

SSL Tool Attach.

1шт.

1

47696335

LOADER

ASSY, Incl 2, 3

1шт.

See also Loader Components in Figure 35.701.AX (08), 35.701.CB (10), 35.723.AA (12), 35.723.AB (08), 35.723.AF (07), 55.415.AQ (08), 82.100.AA (08), 82.100.AF (17), 82.100.AF (18), 82.100.BG (08), 82.300.AX (14), 82.300.AY (08), 90.108.AB (15), 90.108.AC (35)

1шт.

EU Tool Attach.

1шт.

2

81901809

BUSHING,38.25mm ID x 43.03mm OD x 34.92mm L

4шт.

3

47593181

LOADER ARM

ASSY, Incl 2 (Qty 4)

1шт.

See also Arm Components in Figure 82.100.AF (17), 82.300.AB (08)

1шт.
