Запчасти Case IH FARMALL 110C (55.518.AH) - VAR - 334183, 744588 - WINDOW, REAR, WIPER ARM, DELUXE CAB (55) - ELECTRICAL SYSTEMS

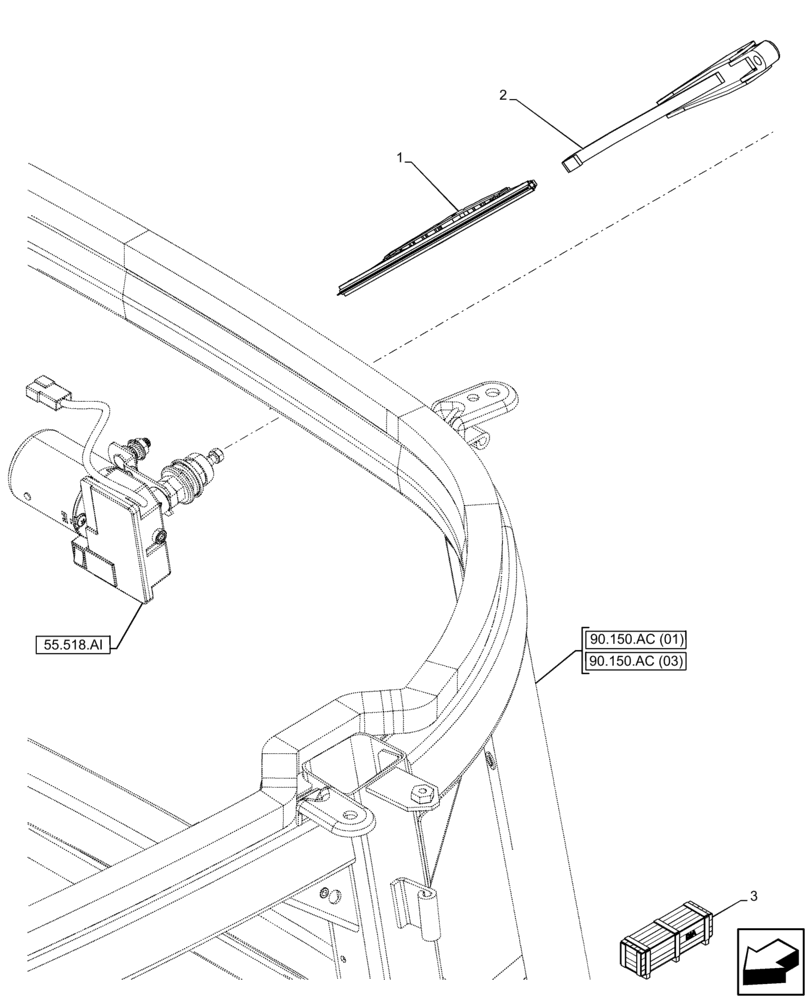

Схема запчастей Case IH FARMALL 110C - (55.518.AH) - VAR - 334183, 744588 - WINDOW, REAR, WIPER ARM, DELUXE CAB (55) - ELECTRICAL SYSTEMS
2
1
3
90.150.ac (01)
55.518.ai
90.150.ac (03)

Артикул

Название

Примечание

Количество

1

84605256

WIPER BLADE,Single, 350mm L

Rear

1шт.

2

84605255

WIPER ARM,Single, 359mm L

Rear

1шт.

3

710642250

DIA KIT, TRACTOR

Rear Wiper and Washer, Incl 1, 2

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
