Запчасти Case IH FARMALL 110C (55.415.AQ[02]) - VAR -336732, 336914 - LOADER ARM, CABLE, W/DIVERTER, W/O SELF-LEVELING (55) - ELECTRICAL SYSTEMS

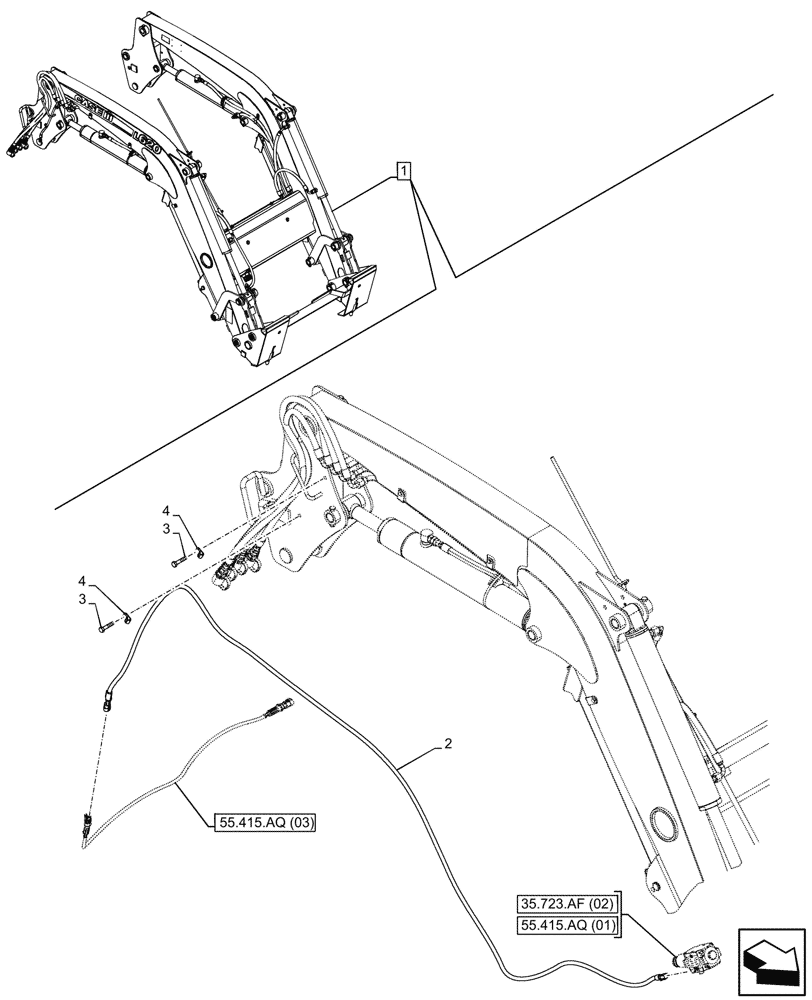

Схема запчастей Case IH FARMALL 110C - (55.415.AQ[02]) - VAR -336732, 336914 - LOADER ARM, CABLE, W/DIVERTER, W/O SELF-LEVELING (55) - ELECTRICAL SYSTEMS
55.415.aq (03)
4
4
3
2
1
3
35.723.af (02)
55.415.aq (01)

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.701.CB (04), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (05), 82.100.AF (06), 82.100.BG (03), 82.300.AX (01), 82.300.AY (03), 90.108.AB (09), 90.108.AC (26)

1шт.

SSL Tool Attach.

1шт.

1

47592511

LOADER

ASSY, Incl 2 - 5

1шт.

See also Loader Components in Figure 35.701.AX (03), 35.701.CB (04), 35.723.AA (05), 35.723.AB (03), 35.723.AF (01), 55.415.AQ (02), 82.100.AA (03), 82.100.AF (05), 82.100.AF (06), 82.100.BG (03), 82.300.AX (04), 82.300.AY (03), 90.108.AB (09), 90.108.AC (26)

1шт.

EU Tool Attach.

1шт.

2

47612288

ELECTRIC CABLE

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

4

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

5шт.

Выбрано товаров: 9
