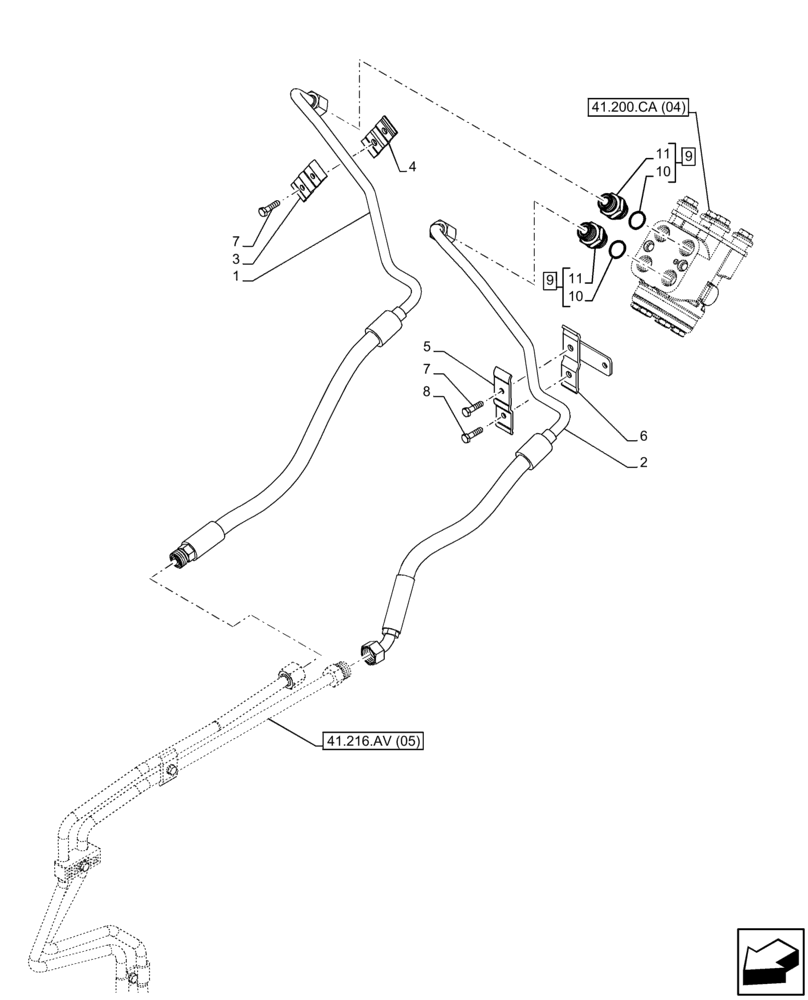

Запчасти Case IH FARMALL 110C (41.216.AV[04]) - VAR - 337323, 390328, 743559, 743560, 744580, 744581, 744990 - HYDRAULIC STEERING, CYLINDER, LINE, POWERSHUTTLE, 4WD (41) - STEERING

1

47730512

PIPE

to Steering Cylinder

1шт.

2

47730507

PIPE

to Steering Cylinder

1шт.

3

84263886

BRACKET

1шт.

4

84313880

BRACKET

1шт.

5

84473566

BRACKET

1шт.

6

47745377

BRACKET

1шт.

7

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

3шт.

8

10902311

BOLT,Hex, M6 x 18mm, Cl 5.8, Full Thd

1шт.

9

5198413

HYD CONNECTOR,1/2" BSPP A13/16"-16"

1/2 BSPP A13/16 - 16 ORSF, ASSY, Incl 10 (Qty 1), 11 (Qty 1)

2шт.

10

5185511

O-RING,1.78mm Thk x 12.42mm ID, 85 Duro

2шт.

11

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

2шт.
