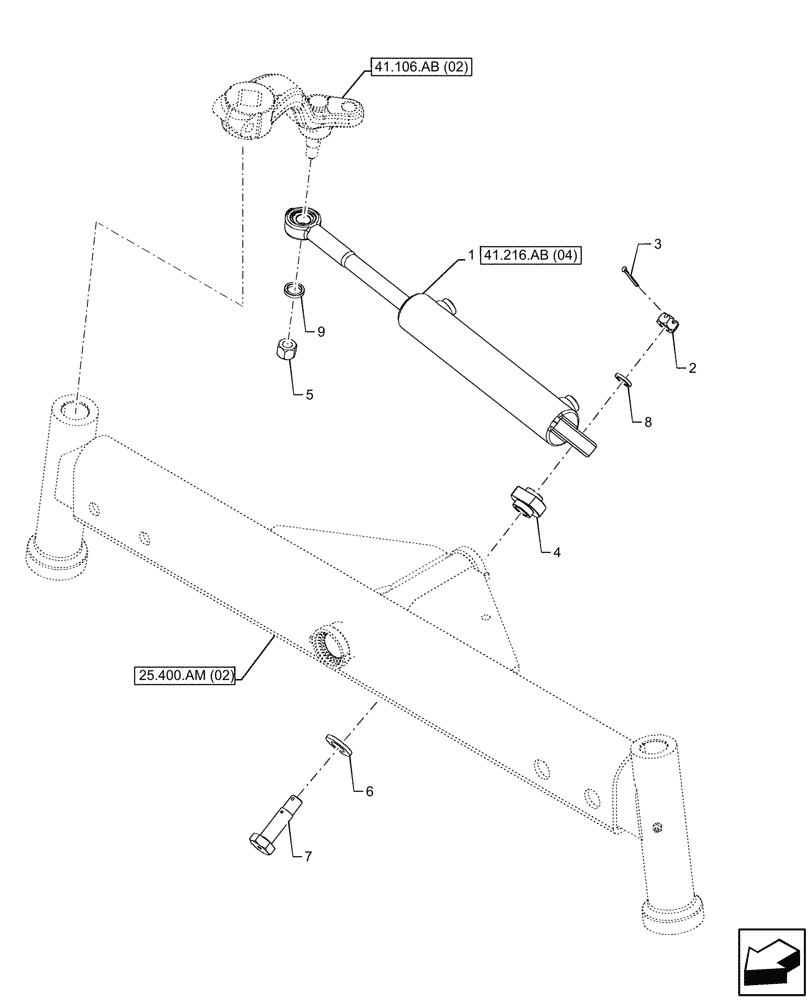

Запчасти Case IH FARMALL 110C (41.216.AB[03]) - VAR - 330581 - FRONT AXLE, OPERATING CYLINDER, 2WD, HEAVY DUTY (41) - STEERING

1

5189893

STEERING CYLINDER,Double Acting, 22mm Rod, 225mm Stroke

ASSY

1шт.

2

10724621

SLOTTED NUT,Hex, M18 x 1.5, R80 ZND

M18 X 1.5

1шт.

3

10734901

COTTER PIN,M4 x 40

1шт.

4

87621273

BUSHING,20mm ID x 50mm OD x 32mm L

1шт.

5

12575911

NUT,M16 x 1.5, Cl 8

1шт.

6

11191974

BELLEVILLE WASHER,M22 Bolt Size x 42mm OD x 5mm Thk

1шт.

7

5175430

PIN,20mm OD x 88mm L

1шт.

8

5168900

WASHER,18.2mm ID x 26mm OD x 4mm Thk

1шт.

9

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

1шт.
