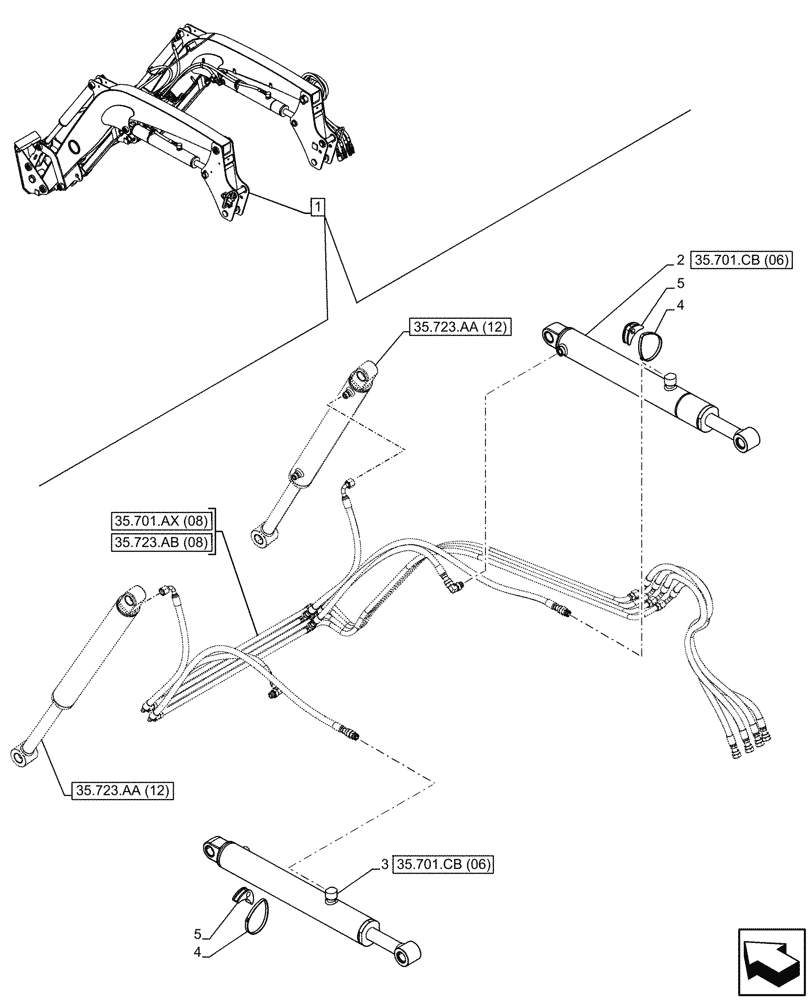

Запчасти Case IH FARMALL 110C (35.701.CB[10]) - VAR - 336740, 336742 - LOADER ARM, BOOM CYLINDER, MOUNTING, W/ DIVERTER, W/O SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

47696354

LOADER

ASSY, Incl 2 - 10

1шт.

See also Loader Components in Figure 35.701.AX (08), 35.723.AA (12), 35.723.AB (08), 35.723.AF (07), 55.415.AQ (08), 82.100.AA (08), 82.100.AF (17), 82.100.AF (18), 82.100.BG (08), 82.300.AB (08), 82.300.AX (13), 82.300.AY (08), 90.108.AB (15), 90.108.AC (35)

1шт.

SSL Tool Attach.

1шт.

1

47696335

LOADER

ASSY, Incl 2 - 10

1шт.

See also Loader Components in Figure 35.701.AX (08), 35.723.AA (12), 35.723.AB (08), 35.723.AF (07), 55.415.AQ (08), 82.100.AA (08), 82.100.AF (17), 82.100.AF (18), 82.100.BG (08), 82.300.AB (08), 82.300.AX (14), 82.300.AY (08), 90.108.AB (15), 90.108.AC (35)

1шт.

EU Tool Attach.

1шт.

2

84575190

LIFT CYLINDER

RH, ASSY

1шт.

3

84575192

LIFT CYLINDER

LH, ASSY

1шт.

4

84406396

FIXING STRIP

2шт.

5

85805567

BLOCK

2шт.
