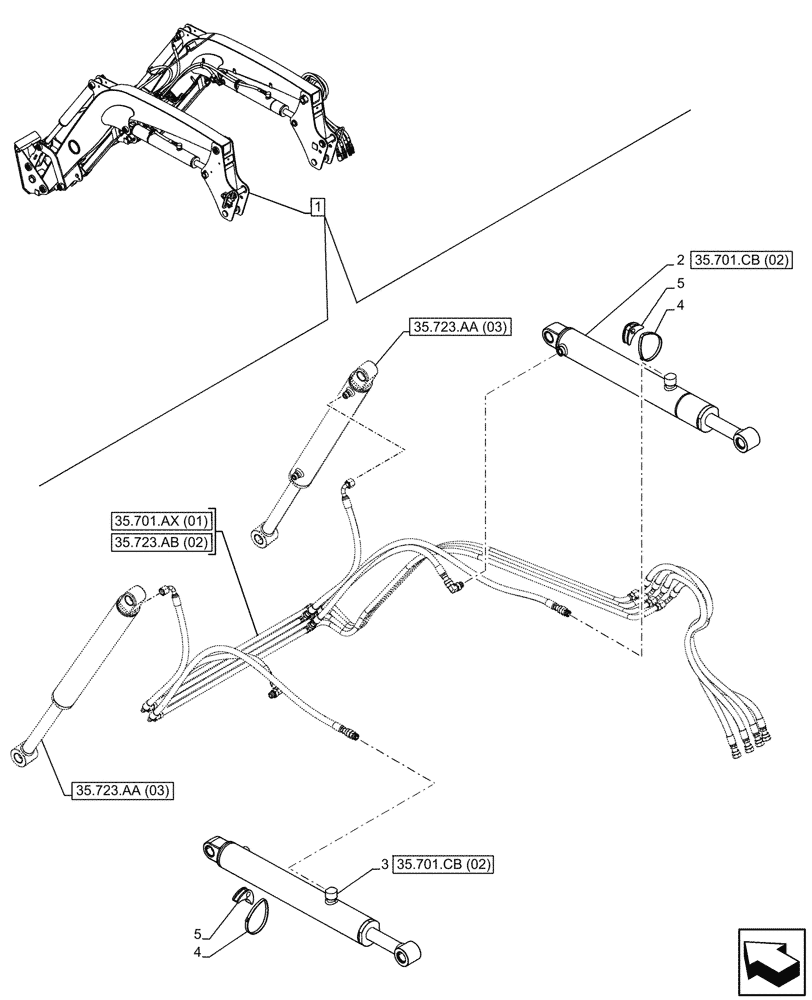

Запчасти Case IH FARMALL 110C (35.701.CB[03]) - VAR - 336732, 336914 - BOOM CYLINDER, MOUNTING, W/O SELF-LEVELING (35) - HYDRAULIC SYSTEMS

1

84321724

LOADER

ASSY, Incl 2 - 5

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.723.AA (03), 35.723.AB (02), 82.100.AA (02), 82.100.AF (01), 82.100.AF (02), 82.100.BG (01), 82.300.AB (02), 82.300.AX (01), 82.300.AY (02), 90.108.AB (09), 90.108.AC (26)

1шт.

SSL Tool Attach.

1шт.

1

47556494

LOADER

ASSY, Incl 2 - 5

1шт.

See also Arm Loader Components in Figure 35.701.AX (01), 35.723.AA (03), 35.723.AB (02), 82.100.AA (02), 82.100.AF (01), 82.100.AF (02), 82.100.BG (01), 82.300.AB (02), 82.300.AX (04), 82.300.AY (02), 90.108.AB (09), 90.108.AC (26)

1шт.

EU Tool Attach.

1шт.

2

84406290

LIFT CYLINDER

RH

1шт.

3

84406289

LIFT CYLINDER

LH

1шт.

4

84406396

FIXING STRIP

2шт.

5

85805567

BLOCK

2шт.
