Запчасти Case IH FARMALL 110C (35.701.AX[06]) - VAR - 336744, 336746 - LOADER ARM, BOOM CYLINDER LINES, W/ SELF-LEVELING (35) - HYDRAULIC SYSTEMS

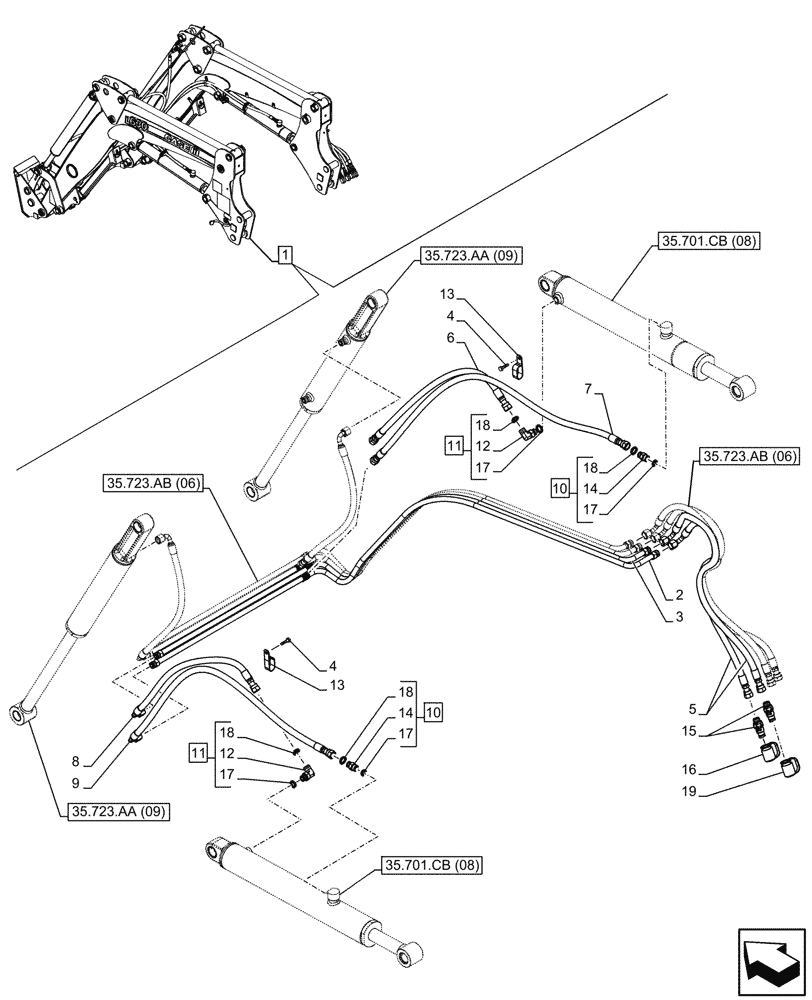

Схема запчастей Case IH FARMALL 110C - (35.701.AX[06]) - VAR - 336744, 336746 - LOADER ARM, BOOM CYLINDER LINES, W/ SELF-LEVELING (35) - HYDRAULIC SYSTEMS
35.723.aa (09)
14
15
18
1
8
10
18
19
9
2
17
12
7
5
11
10
18
17
18
17
16
11
13
13
14
3
17
4
6
12
4
35.701.cb (08)
35.723.ab (06)
35.723.ab (06)
35.701.cb (08)
35.723.aa (09)

Артикул

Название

Примечание

Количество

1

47589358

LOADER

ASSY, Incl 2 - 19

1шт.

See also Loader Components in Figure 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AA (06), 82.100.AF (12), 82.100.AF (13), 82.100.BG (06), 82.300.AB (06), 82.300.AX (09), 82.300.AY (06), 90.108.AB (12), 90.108.AC (32)

1шт.

SSL Tool Attach

1шт.

1

47565458

LOADER

ASSY, Incl 2 - 19

1шт.

See also Loader Components in Figure 35.701.CB (08), 35.723.AA (09), 35.723.AB (06), 82.100.AA (06), 82.100.AF (12), 82.100.AF (13), 82.100.BG (06), 82.300.AB (06), 82.300.AX (10), 82.300.AY (06), 90.108.AB (12), 90.108.AC (32)

1шт.

EU Tool Attach

1шт.

2

84575173

PIPE

1шт.

3

84575176

PIPE

1шт.

4

16043921

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

5

84406192

FLEXIBLE HOSE,1250mm L

2шт.

6

84575180

HOSE

1шт.

7

84575183

HOSE

1шт.

8

84575184

HOSE

1шт.

9

84575185

HOSE

1шт.

10

83963374

FITTING,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 14 (Qty 1), 17 (Qty 1), 18 (Qty 1)

2шт.

11

83971549

90 ELBOW,13/16"-16 ORFS x 3/4"-16 ORB

ASSY, Incl 12 (Qty 1), 17 (Qty 1), 18 (Qty 1)

2шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

2шт.

13

5145401

CLAMP

2шт.

14

NSS

NOT SOLD SEPARAT

Fitting, Incl in 10

2шт.

15

84406394

FITTING

2шт.

16

84406395

PLASTIC PLUG

Yellow

1шт.

17

80128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

18

89992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16" - 16 UN

4шт.

19

84406403

PLASTIC PLUG

Green

1шт.

Выбрано товаров: 24
