Запчасти Case IH FARMALL 110C (35.204.BJ[02]) - VAR - 743569 - 2 REMOTE CONTROL VALVE, W/ 4 DELUXE COUPLERS, LINE (35) - HYDRAULIC SYSTEMS

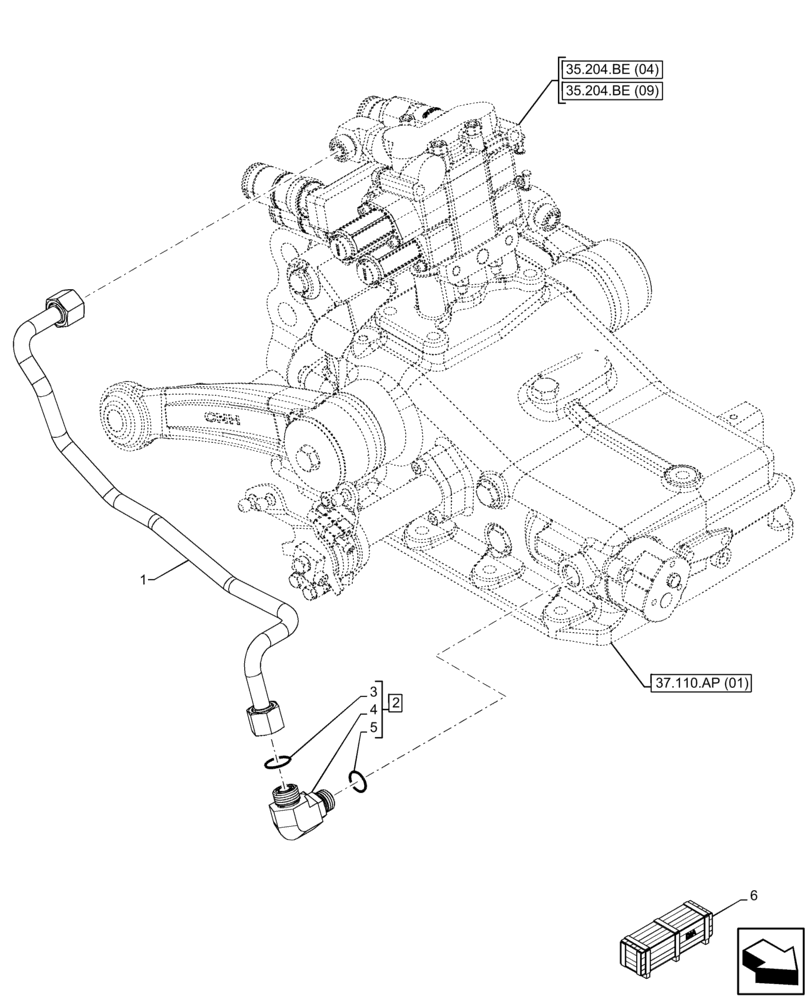

Схема запчастей Case IH FARMALL 110C - (35.204.BJ[02]) - VAR - 743569 - 2 REMOTE CONTROL VALVE, W/ 4 DELUXE COUPLERS, LINE (35) - HYDRAULIC SYSTEMS
3
5
1
2
35.204.be (04)
35.204.be (09)
4
6
37.110.ap (01)

Артикул

Название

Примечание

Количество

1

84390521

TUBE

Delivery

1шт.

2

86579694

ELBOW,90 Degree, 1"-14 ORFS x M22 x 1.5 ORB

ASSY, Incl 3 - 5

1шт.

3

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow Body, Incl in 2

1шт.

5

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

6

719108700

DIA KIT, TRACTOR

2nd Remote - 2 Coupler De Luxe, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 7
