(33.202.AP[03]) - BRAKE LINE, W/O TRAILER BRAKE VALVE

Запчасти Case IH FARMALL 110C (33.202.AP[03]) - BRAKE LINE, W/O TRAILER BRAKE VALVE (33) - BRAKES & CONTROLS

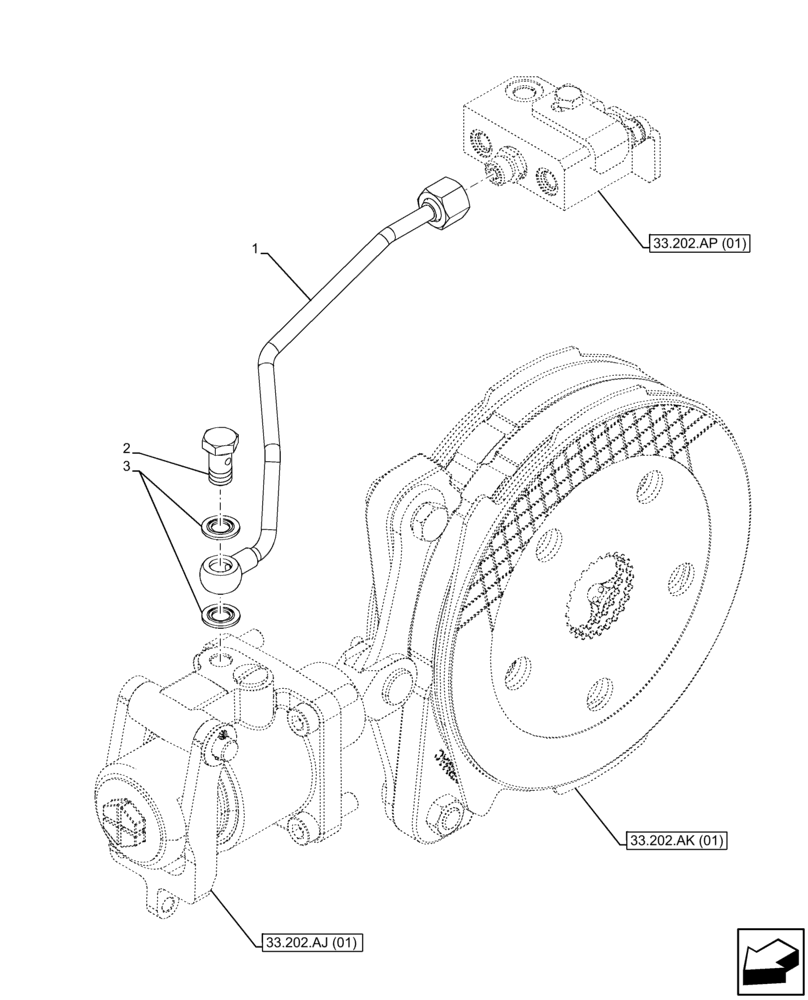

Схема запчастей Case IH FARMALL 110C - (33.202.AP[03]) - BRAKE LINE, W/O TRAILER BRAKE VALVE (33) - BRAKES & CONTROLS
33.202.aj (01)
1
3
33.202.ak (01)
2
33.202.ap (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47584483

PIPE

Transmission Brake, RH

1шт.

2

5155703

BANJO BOLT,M12 x 1.25 x 22mm

1шт.

3

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

2шт.

Выбрано товаров: 3
