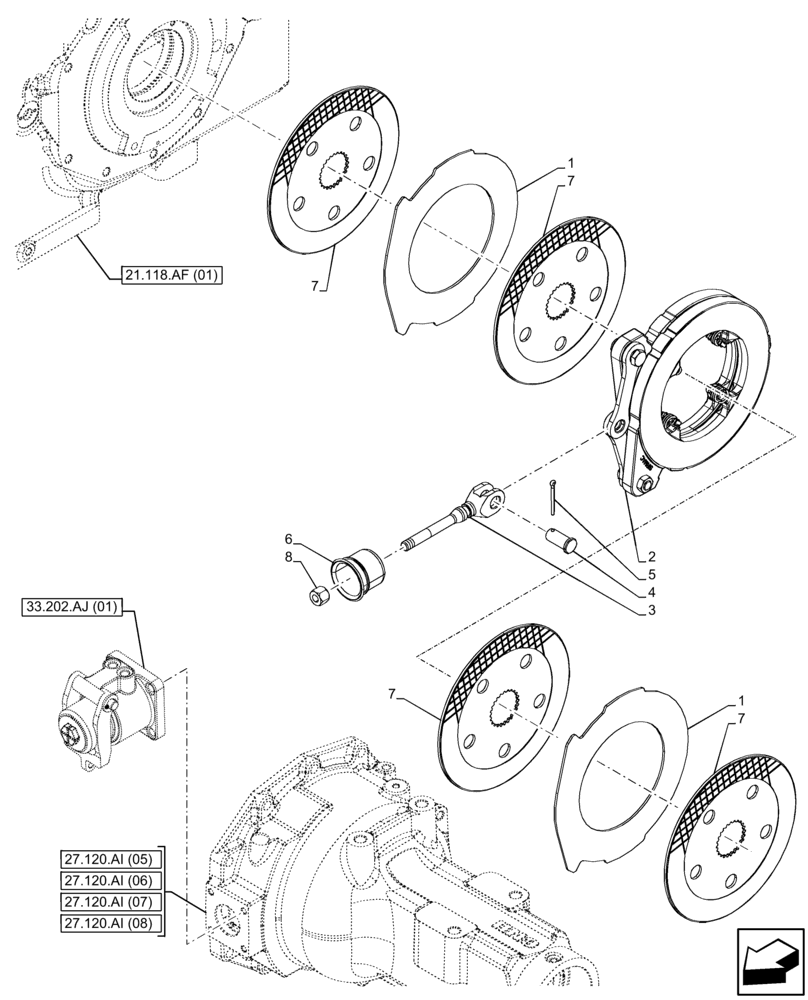

Запчасти Case IH FARMALL 110C (33.202.AK[01]) - VAR - 333411, 390411 - BRAKE DISC (33) - BRAKES & CONTROLS

1

84344766

BRAKE DISC,147mm ID x 228.5mm OD x 2.65mm Thk

4шт.

2

84343719

BRAKE

1шт.

3

84343801

TIE-ROD

1шт.

4

84343802

PIN,15.7mm OD x 33.5mm L

1шт.

5

10733801

COTTER PIN,M4 x 36

4 x 36mm STL ZND

1шт.

6

82037652

SEAL,12mm ID x 57mm OD x 28mm Thk

2шт.

7

84344765

BRAKE DISC,45.8mm ID x 223.75mm OD x 4.8mm Thk, 24T

8шт.

8

12577511

NUT,M12 x 1.75, Cl 8

2шт.
