Запчасти Case IH FARMALL 110C (31.110.AP[01]) - VAR - 743565 - PTO 540 RPM, OUTPUT SHAFT, SHUTTLE (31) - IMPLEMENT POWER TAKE OFF

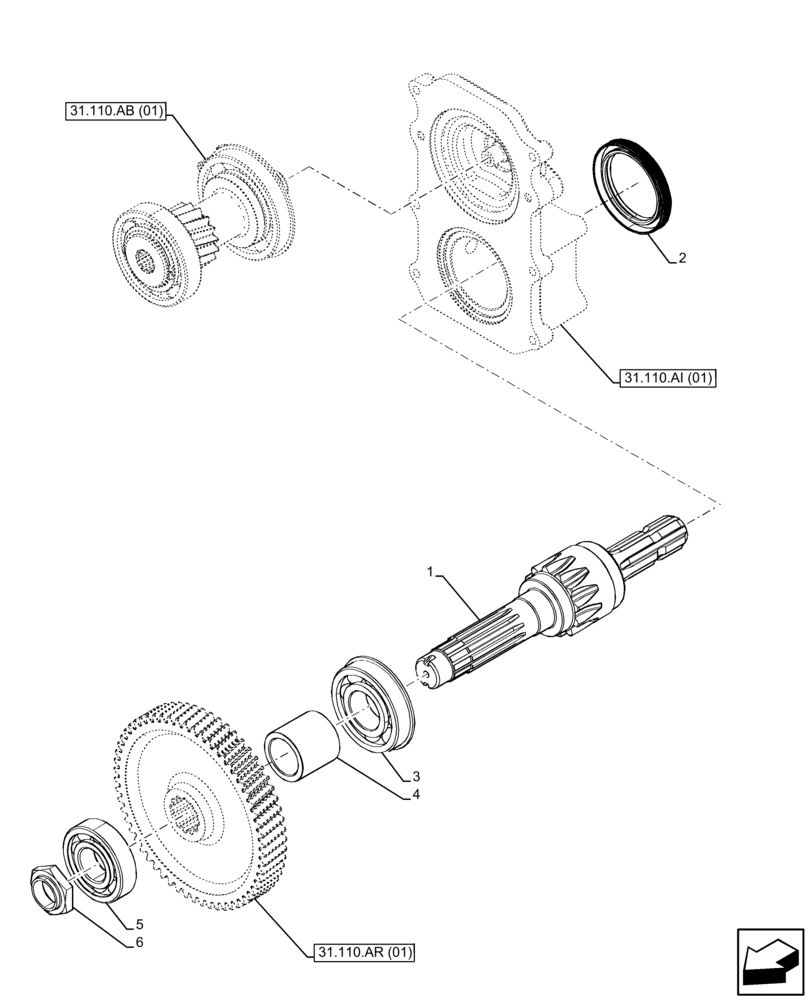

Схема запчастей Case IH FARMALL 110C - (31.110.AP[01]) - VAR - 743565 - PTO 540 RPM, OUTPUT SHAFT, SHUTTLE (31) - IMPLEMENT POWER TAKE OFF
31.110.ar (01)
2
6
31.110.ai (01)
1
31.110.ab (01)
4
3
5

Артикул

Название

Примечание

Количество

1

47626741

SHAFT,355.5mm L

335.5mm

1шт.

2

84357623

SEAL,67.9mm ID x 95mm OD x 12mm Thk

70 x 95 x 12mm

1шт.

3

5168238

BALL BEARING,40mm ID x 90mm OD x 23mm W

1шт.

4

5168235

SPACER,38mm ID x 52mm OD x 50mm L

1шт.

5

20045200

BALL BEARING,35mm ID x 80mm OD x 21mm

D35 x 80 x 21mm

1шт.

6

5122985

NUT,Ring, M32, 1.5 Pitch

1шт.

Выбрано товаров: 6
