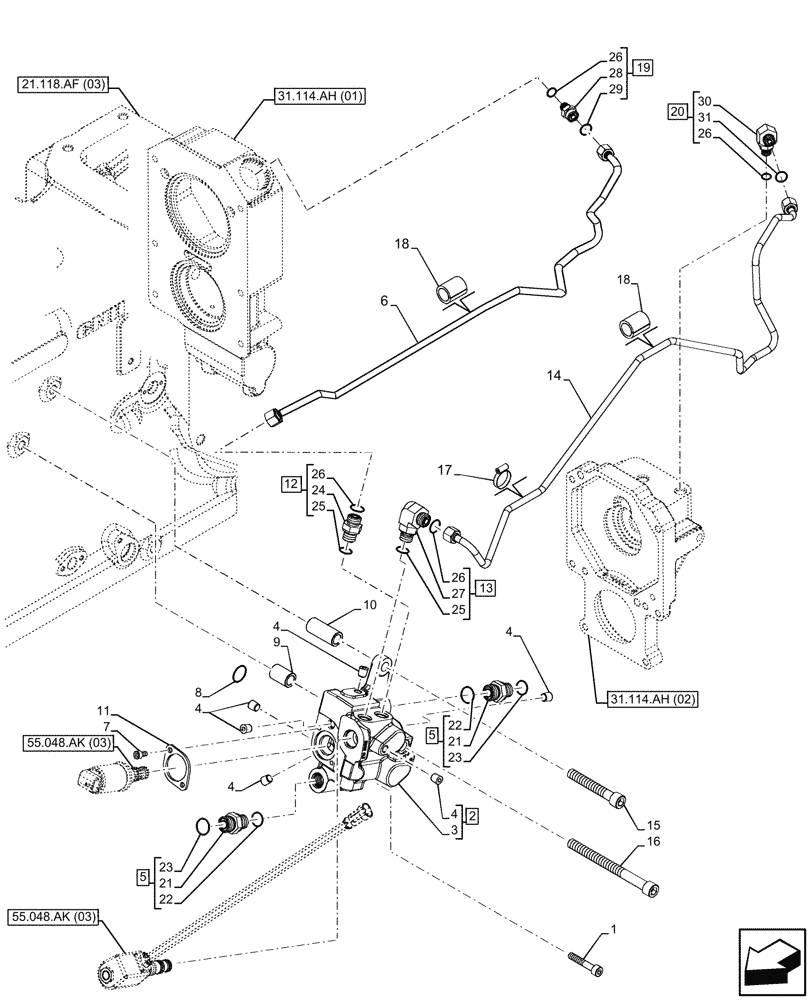

Запчасти Case IH FARMALL 110C (31.104.AR[04]) - VAR - 744580, 744581, 744990 - PTO, CONTROL VALVE, 4WD (31) - IMPLEMENT POWER TAKE OFF

1

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

1шт.

2

84366534

VALVE BODY

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

4

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

7шт.

5

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 21 - 23

2шт.

6

47572721

PIPE,798mm L

To PTO Breake

1шт.

7

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

2шт.

8

638-53200

O-RING,2.65mm Thk x 20mm ID, Cl 5, 75 Duro

1шт.

9

84364460

SPACER,13mm ID x 20mm OD x 29mm L

1шт.

10

84366578

SPACER,13mm ID x 20mm OD x 47mm L

1шт.

11

5194826

BRACKET

1шт.

12

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

ASSY, Incl 24, 25 (Qty 1), 26 (Qty 1)

1шт.

13

86579687

ELBOW,90 Degree, 11/16"-16 x M16 x 1.5 ORB

ASSY, Incl 25 (Qty 1), 26 (Qty 1), 27

1шт.

14

47569991

PIPE,1298mm L

To PTO Clutch

1шт.

15

14332121

HEX SOC SCREW,M12 x 1.25 x 80mm, Cl 8.8

1шт.

16

14332921

SCREW,Hex M12 x 1.25 x 140mm

1шт.

17

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

1шт.

18

4959735

SPACER,18mm ID x 25mm OD x 30mm L

2шт.

19

86580177

HYD CONNECTOR,11/16"-16 ORFS x M12 x 1.5 ORB

ASSY, Incl 26 (Qty 1), 28, 29

1шт.

20

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

ASSY, Incl 26 (Qty 1), 30, 31

1шт.

21

NSS

NOT SOLD SEPARAT

Connector, Incl in 5

2шт.

22

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

2шт.

23

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

24

NSS

NOT SOLD SEPARAT

Connector, Incl in 12

1шт.

25

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

26

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

27

NSS

NOT SOLD SEPARAT

Elbow, Incl in 13

1шт.

28

NSS

NOT SOLD SEPARAT

Connector, Incl in 19

1шт.

29

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

1шт.

30

NSS

NOT SOLD SEPARAT

Elbow, Incl in 20

1шт.

31

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.
