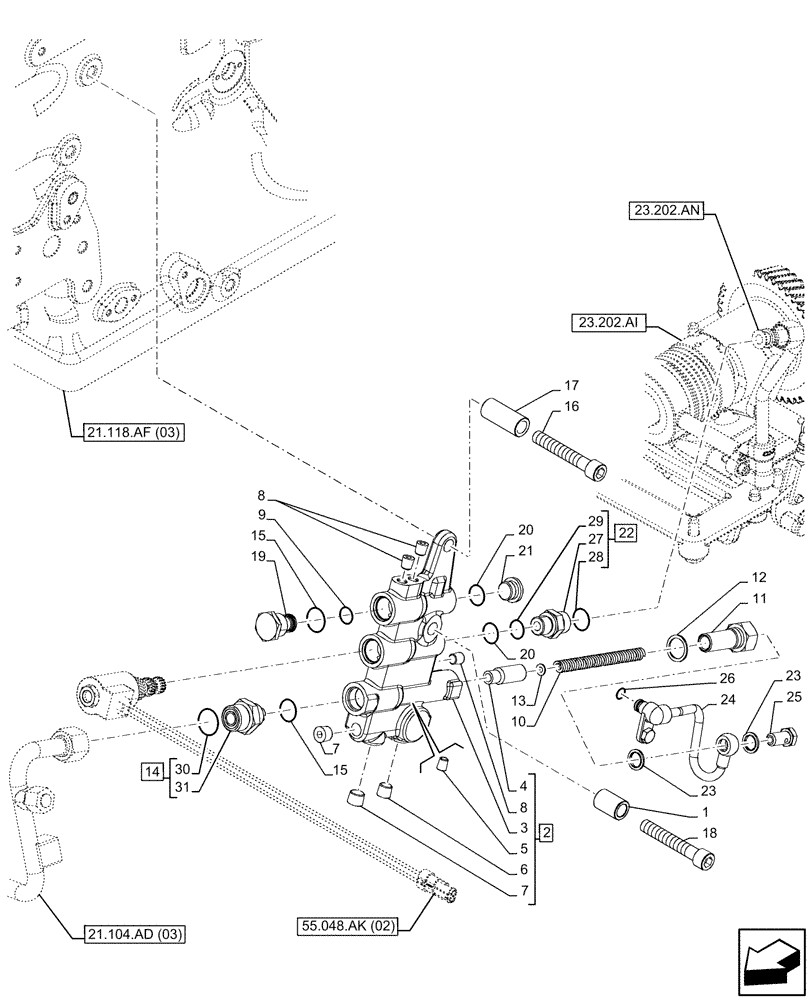

Запчасти Case IH FARMALL 110C (31.104.AR[03]) - VAR - 744580, 744581, 744990 - PTO, CONTROL VALVE, 4WD (31) - IMPLEMENT POWER TAKE OFF

1

84364460

SPACER,13mm ID x 20mm OD x 29mm L

1шт.

2

84416385

VALVE BODY

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

4

5169220

HYDRAULIC VALVE

Max Pressure

1шт.

5

14326101

PLUG,M8 x 11

M8 x 11mm STL ZND

1шт.

6

10269404

PLUG,M12 x 1.5

M12 x 1.5 x 11mm STL DAC

1шт.

7

10269501

PLUG,M14 x 1.5

M14 x 1.5 x 11mmm STL ZND

2шт.

8

14326004

PLUG,Hex Socket, M10 x 1.25 x 11.00mm, STL, DAC

3шт.

9

14453280

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

10

84407183

SPRING,11.5mm OD x 120mm L

1шт.

11

84416353

FITTING,M20 x 1.5

1шт.

12

10257460

SEAL,M20.3 x 26 x 1.5

1шт.

13

13550124

WASHER,5.15mm ID x 11mm OD x 1mm Thk

5 x 11mm

1шт.

14

84396649

HYD CONNECTOR,1" - 14 ORFS x M22 x 1.5 ORB

ASSY, Incl 30, 31

1шт.

15

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

16

14332021

SCREW

M12X1.25 X 75 8.8 ZND

1шт.

17

84366578

SPACER,13mm ID x 20mm OD x 47mm L

1шт.

18

14332121

HEX SOC SCREW,M12 x 1.25 x 80mm, Cl 8.8

1шт.

19

5154967

PLUG,Hex R0.2

1шт.

20

14437985

O-RING,15.3mm ID x 2.4mm

2шт.

21

10273111

PLUG,M18 x 1.5 x 13

1шт.

22

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

ASSY, Incl 27 - 29

1шт.

23

87356828

SEALING WASHER,12.00mm ID x 20.00mm OD x 1.50mm

2шт.

24

84416351

RIGID TUBE

1шт.

25

10185011

BANJO BOLT,M12 x 1.25 x 23mm

1шт.

26

14452980

O-RING,9.25mm ID x 1.78" Width

1шт.

27

NSS

NOT SOLD SEPARAT

Connector, Incl in 22

1шт.

28

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

29

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

30

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

31

NSS

NOT SOLD SEPARAT

Connector, Incl in 14

1шт.
