(31.104.AN[02]) - PTO CLUTCH, OIL LINE, BRACKET, CAB

Запчасти Case IH FARMALL 110C (31.104.AN[02]) - PTO CLUTCH, OIL LINE, BRACKET, CAB (31) - IMPLEMENT POWER TAKE OFF

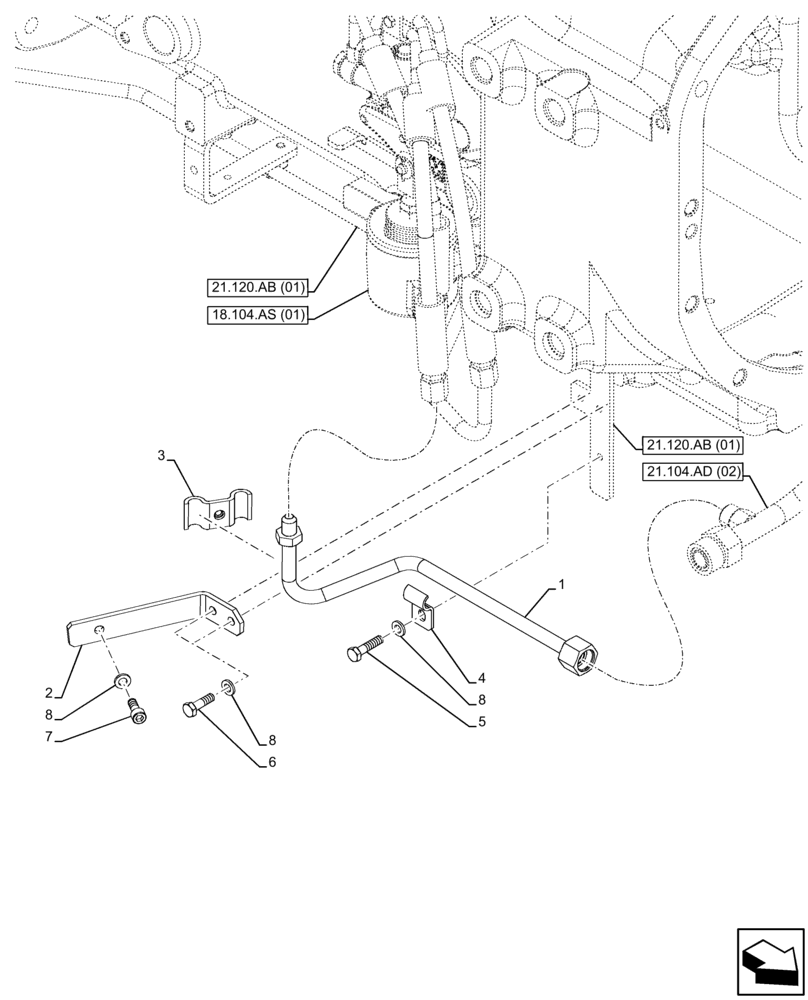

Схема запчастей Case IH FARMALL 110C - (31.104.AN[02]) - PTO CLUTCH, OIL LINE, BRACKET, CAB (31) - IMPLEMENT POWER TAKE OFF
8
6
8
21.120.ab (01)
2
5
4
21.104.ad (02)
18.104.as (01)
3
7
8
21.120.ab (01)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47485064

PIPE

PTO Hydraulic Control

1шт.

2

84418583

PLATE

1шт.

3

84420681

BRACKET

1шт.

4

47492294

BRACKET

1шт.

5

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

1шт.

6

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

7

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

1шт.

8

10519404

WASHER,6.4mm ID x 11.95mm OD x 1.6mm Thk

4шт.
